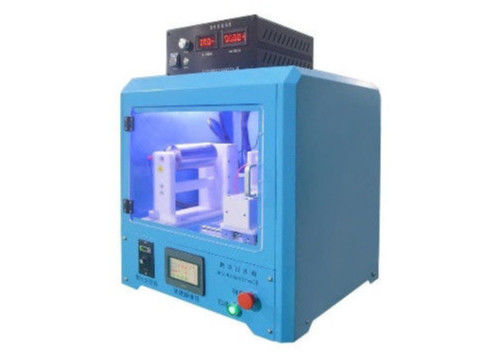

Custom 220V Professional Electrospinning Equipment 30KVDC

Name: Custom 220V Professional Electrospinning Equipment 30KVDC
Brand: Wuhan Ruiming Experimental Instrument
SKU: E02-001
Availability: InStock

Brand Name:	RUIMING
Model Number:	E02-001
MOQ:	1pcs
Price:	Negotiable
Delivery Time:	20-90 days after order confirmed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

patent

Voltage DC:

0······~30KV

Current:

<1mA

Positioning Accuracy:

±0.05mm

Controllable Temperature Range:

Room Temperature·~45℃

Size:

Less Than 60*60*80cm

Sprinkler System:

Single Needle Nozzle

Packaging Details:

carton box and wooden box

Supply Ability:

200 sets per month

Highlight:

220V Professional Electrospinning Equipment

Custom 220V Electrospinning Equipment

30KVDC electrospinning machine

Product Description

Professional Electrospinning Equipment Design According To Customer'S Research Direction, Laboratory Area And Budget

Parameters of E02-001 Professional electrospinning equipment

E02-001 Professional electrospinning equipment
1. High voltage power supply system	5. X-Y Axial displacement motion system
Voltage DC:0······~30KV	X Shaft displacement stroke:50~200mm
Current:<1mA	Y Shaft automatic motion module: effective stroke 150mm,
2.Numerical control operating system	Positioning accuracy: ±0.05mm
Control by 4.3 Touch screen and control system communication	5. Air draft device
3. Liquid supply pump system	Exhaust air volume of the exhaust fan:0.5m³/min
Liquid supply mode: single syringe	7.Heating device
Maximum solution:20ml	Controllable temperature range: room temperature·~45℃
Automatic feeding speed range:0.01~30ml/h	Temperature control speed:≤5min;
Manual feeding speed range:1~80ml/min	8.Sprinkler system
Applicable syringe specifications:1,10,20ml	Single needle nozzle
Can be installed on the side wall or mobile platform	9. Equipment outside shell
4.Nanofiber receiver system	Size:less than 606080cm
Roller collection: effective length 150mm	Colour:light blue
Diameter: ф80mm	Door is transparent colour
Speed: 0······~1000r/min	10.power supply wires
Flat collection:L-shaped 180mm*220mm	220V,type triangular plug

Introduction of E02-001 Professional electrospinning equipment

laboratory electrospinning equipment is integrated with PLC control, with high degree of automation, simple operation and easy to use. The equipment can spin many materials, such as commonly used water-soluble materials PVA, PEO, PVP, non-water-soluble materials PLA, PVDF, PAN, PU, PA, PS, PES, etc. You can choose different spinning materials according to your product needs .
