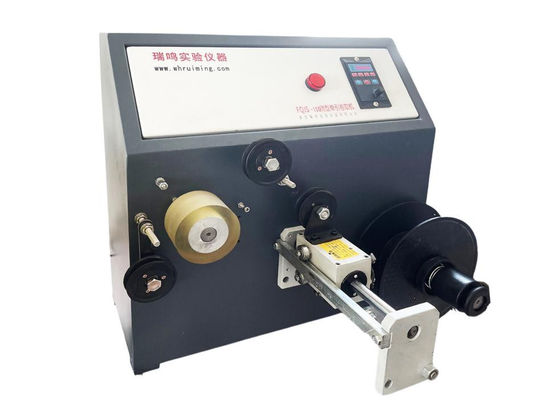

FQJS-100 Experimental Drawing Auxiliary Machine

Wuhan Ruiming Plastic Machinery Co., Ltd. is located in wuhan, the historical and cultural city, the capital of Hubei province, which was established in 2001. The company is a professional manufacturer of polymer experimental equipment, specializing in the production of miniature double-cone twin-screw screw extruder, experimental micro-extruder, micro-injection machine, micro-high tensile ratio spinning machine, micro-extrusion unit, micro-granulator unit and experimental plastic blowing machine series products and so on. The company also successfully developed and issued the leading level of laboratory mini twin screw extruder and laboratory mini injection molding machine series products. Main performance indicators of the series of mini extruder and mini injection machine have achieved and surpassed the level of similar foreign products such as HAAKE MiniLab and DSM Xplore in many aspects, but have high cost performance. Especially suitable for the laboratory research needs of universities and enterprise R&D departments

Technical parameters of FQJS-100 experimental drawing auxiliary machine

The first drawing

Wire speed: 1.8 to 8 m/min

Wheel diameter: 160mm stainless steel

The second drawing

Wire speed: 1.8 to 8 m/m

Wheel diameter: 160mm stainless steel

Motor power: 0.18KW

Filament tube coiling

Maximum roll diameter: φ 200mm

Spring tension control winding

Roll position: single working position

Size: 550mm*250mm*630mm

Motor power: 0.12KW
