Experimental Drawing And Traction Coiler Unit

Wuhan Ruiming Plastic Machinery Co., Ltd. is located in wuhan, the historical and cultural city, the capital of Hubei province, which was established in 2001. The company is a professional manufacturer of polymer experimental equipment, specializing in the production of miniature double-cone twin-screw screw extruder, experimental micro-extruder, micro-injection machine, micro-high tensile ratio spinning machine, micro-extrusion unit, micro-granulator unit and experimental plastic blowing machine series products and so on. The company also successfully developed and issued the leading level of laboratory mini twin screw extruder and laboratory mini injection molding machine series products. Main performance indicators of the series of mini extruder and mini injection machine have achieved and surpassed the level of similar foreign products such as HAAKE MiniLab and DSM Xplore in many aspects, but have high cost performance. Especially suitable for the laboratory research needs of universities and enterprise R&D departments

Technical parameters of drawing head :(replaceable microtube head)

1. Root number: 1

2. Aperture: 2.5

3. Heating power: 150W

4. Maximum temperature: 450℃

Technical parameters of cooling water tank:

1. Length: 700mm

2. Material: stainless steel

3. Number of guide wheels: 4

4. Guide wheel material: stainless steel

5. Bearing material: stainless steel

Technical parameters of SFC-180 cooling air tank:

Fan quantity: 6

Size: L700×W100×H310

Fan power: 30W

Total power: 180W

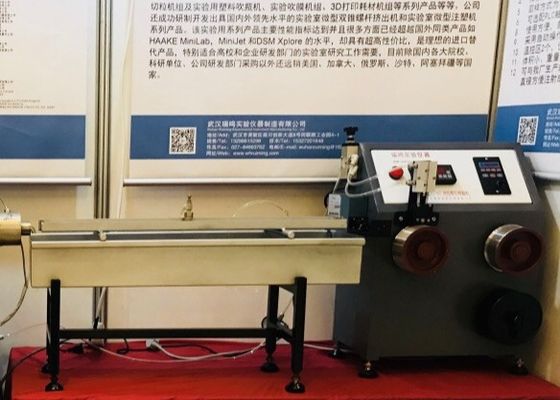

Experimental drawing and traction coiler unit

Experimental drawing and traction coiler unit can do extrusion tube drawing experiment.

Ο Small size, light weight, less material, can be operated on the test bench.

Ο Replace the machine head can do 3D printing consumable wire or microtube experiment.

Ο Set traction, wire tube winding as one, one machine multi-purpose, convenient, cost-effective.
