First Drawing Laboratory Unidirectional Drawing Machine For PP Graphene Spline

Name: First Drawing Laboratory Unidirectional Drawing Machine For PP Graphene Spline
Brand: Wuhan Ruiming Experimental Instrument
SKU: SLS-160
Availability: InStock

Brand Name:	RUIMING
Model Number:	SLS-160
MOQ:	1pcs
Price:	Negotiable
Delivery Time:	20-90 days after order confirmed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

patent

Linear Speed:

4-30m's

Traction Wheel Diameter:

Φ92mm

Temperature Range Of The First Drawing:

20-180*℃

Heating Power:

180W

Heating Voltage:

220V

Moter Power:

40w

Packaging Details:

carton box and wooden box

Supply Ability:

200 sets per month

Highlight:

Laboratory Unidirectional Drawing Machine

Graphene Spline Laboratory Unidirectional Drawing Machine

Product Description

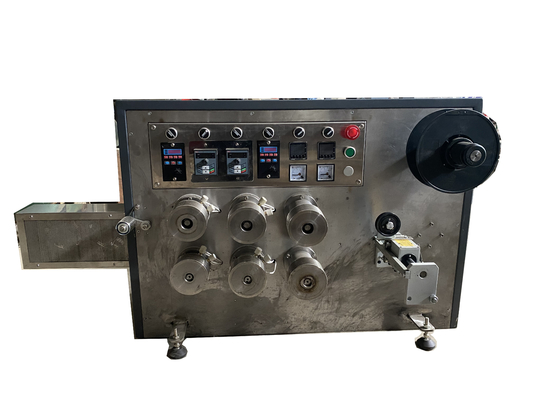

Laboratory Unidirectional Drawing Machine For PP And Graphene Spline Research

**20-180*℃ Temperature First Drawing Laboratory Unidirectional Drawing Machine For PP And Graphene Spline Research**

The laboratory unidirectional drawing machine is the preferred equipment for tensile orientation enhancement in plastic spinning

It has the following characteristics;

1. Small size, light weight, less raw material, can be operated on the experimental table.

2. Set secondary heating, unidirectional stretching, strengthening orientation, line arrangement, winding as one, easy to use, reliable operation, stable operation.

3. It can be used together with the experimental twin screw extruder produced by our company, eliminating the granulation process, using very few raw materials can complete an experiment, and avoid the damage to the material by secondary processing.

Key technical parameters of laboratory unidirectional drawing machine

Key technical parameters
Model	SLS-160
The first drawing
Line speed	4-30m's
Moter power	40w
Voltage	220V
Traction wheel diameter	Φ92mm
Temperature range of the first drawing	20-180*℃
Heating power	180W
Heating voltage	220V
The second drawing
Line speed	8-75m's
Moter power	40W
Voltage	220V
Traction wheel diameter	Φ92mm
Temperature range of the second drawing	20-180C
Heating power	180W
Heating voltage	220V
The third drawing
Line speed	4-30m's
Motor power	40W
Voltage	220V
Coiling apparatus
Automatic wiring
Width adjustable
Maximum coiling speed	70rpm (max)
