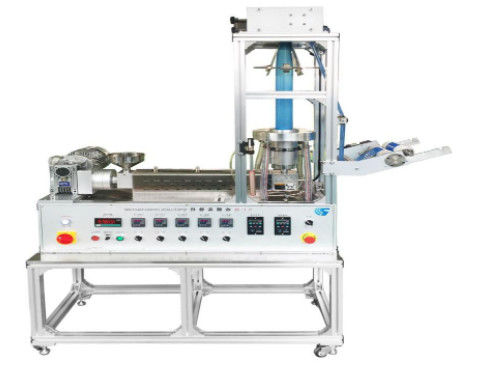

Lab Small Plastic Film Blowing Extruder Machine Dia 20mm Barrel Screw

Lab Small Plastic Film Blowing Extruder Machine Dia 20mm Barrel Screw

  • Lab Small Plastic Film Blowing Extruder Machine Dia 20mm Barrel Screw
Lab Small Plastic Film Blowing Extruder Machine Dia 20mm Barrel Screw
Product Details:
Place of Origin: China
Brand Name: RUIMING
Certification: patent
Model Number: SCM20
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton box and wooden box
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Diameter Of Barrel Screw: ф20mm Barrel Screw Material: 38CrMoALA
Barrel Heating Mode: Electric Heating Moto Power: 1.10kw
Winding Motor: Frequency Conversion Motor Winding Station: Single Working Station
High Light:

Lab Film Blowing Extruder Machine

,

Dia 20mm blown film extruder machine

,

Plastic blown film extrusion machine

Technical parameters of SCM20 laboratory film blowing machine





Technical parameters of SCM20 laboratory film blowing machine
1,SJ20/28 Single screw extruder Runner treatment: inside and outside electroplating - polishing treatment
Diameter of barrel screw:ф20mm Heating mode: electric heating
Barrel screw material:38CrMoALA 3,Film blowing machine
Barrel heating mode: electric heating Blown film width:80-120mm
Moto power:1.10kw Diameter of traction roller:ф65mm
Speed regulation mode: frequency conversion speed regulation Length of traction roller:200mm
Screw speed:10-60rpm Traction roller drive: independent drive
2,Mould Winding motor: frequency conversion motor
Blowing film type: mouth film upward Winding station: single working station
Mould caliber:ф30mm Winding mode: friction winding
Mold structure: spiral structure



Application:



The laboratory blown film extruder blown film means that the plastic melt is continuously extruded through the die under a certain temperature and a certain shearing force, and is inflated by compressed air, air ring cooling and frequency conversion traction. The process of obtaining a bi-fold plastic film. This machine is mainly used to detect the blown film feasibility of polymer materials and the gel condition in the material, as well as the dispersion of colored dispersion, control mixture and extrudate.
