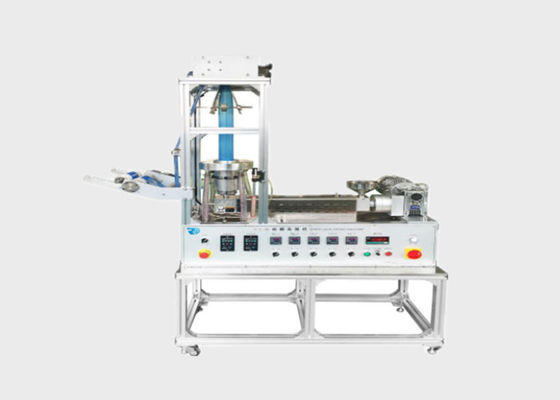

SCM20 80mm-120mm Width Lab Film Blowing Machine

SCM20 80mm-120mm Width Lab Film Blowing Machine

  • SCM20 80mm-120mm Width Lab Film Blowing Machine
SCM20 80mm-120mm Width Lab Film Blowing Machine
Product Details:
Place of Origin: China
Brand Name: RUIMING
Certification: patent
Model Number: SCM20
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton box and wooden box
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Blowing Film Type: Mouth Film Upward Mould Caliber: ф30mm
Mold Structure: Spiral Structure Traction Roller Drive: Independent Drive
Winding Motor: Frequency Conversion Motor Winding Mode: Friction Winding
High Light:

120mm Width Lab Film Blowing Machine

,

80mm Width Lab Film Blowing Machine

,

SCM20 Laboratory Film Blowing Machine

Laboratory Film Blowing Machine



Wuhan Ruiming Experimental Instrument Manufacturing Co., Ltd. successfully developed and issued laboratory mini-twin screw extruder and laboratory mini-injection molding machine series products which with advanced technology both in domestic and aboard. The series of mico extruder and micro injection machine have achieved and surpassed the technology level of similar foreign products such as HAAKE MiniLab, MiniJet and DSM Xplore in many aspects, but with high cost performance, they are ideal imported alternative products. Especially suitable for laboratory research of university and development department of enterprise, in addition to domestic universities, research units, company research and development department, our products also exported to the United States, Canada, Russia, Saudi Arabia, Azerbaijan and so on.



Technical parameters of SCM20 laboratory film blowing machine



Technical parameters of SCM20 laboratory film blowing machine
1,SJ20/28 Single screw extruder Runner treatment: inside and outside electroplating - polishing treatment
Diameter of barrel screw:ф20mm Heating mode: electric heating
Barrel screw material:38CrMoALA 3,Film blowing machine
Barrel heating mode: electric heating Blown film width:80-120mm
Moto power:1.10kw Diameter of traction roller:ф65mm
Speed regulation mode: frequency conversion speed regulation Length of traction roller:200mm
Screw speed:10-60rpm Traction roller drive: independent drive
2,Mould Winding motor: frequency conversion motor
Blowing film type: mouth film upward Winding station: single working station
Mould caliber:ф30mm Winding mode: friction winding
Mold structure: spiral structure



Laboratory film blowing machine
