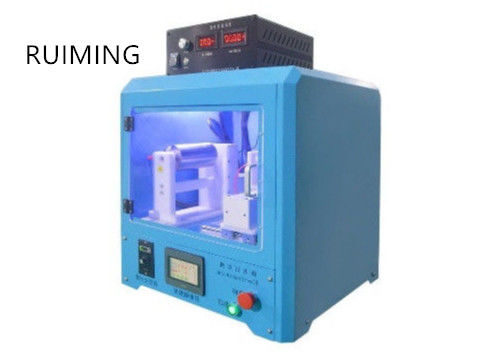

150mm Roller Nanofibers Electrospinning Machine 1000r/Min

Name: 150mm Roller Nanofibers Electrospinning Machine 1000r/Min
Brand: Wuhan Ruiming Experimental Instrument
SKU: E02-001
Availability: InStock

Brand Name:	RUIMING
Model Number:	E02-001
MOQ:	1pcs
Price:	Negotiable
Delivery Time:	20-90 days after order confirmed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

patent

Liquid Supply Mode:

Single Syringe

Maximum Solution:

20ml

Automatic Feeding Speed Range:

0.01~30ml/h

Roller Collection:

Effective Length 150mm

Diameter:

ф80mm

Speed:

0······~1000r/min

Packaging Details:

carton box and wooden box

Supply Ability:

200 sets per month

Highlight:

150mm Roller Electrospinning Machine

Electrospinning Machine 1000r/Min

Nanofibers Electrospinning Equipment

Product Description

Parameter of electrospinning equipment

E02-001 Professional electrospinning equipment
1. High voltage power supply system	5. X-Y Axial displacement motion system
Voltage DC:0······~30KV	X Shaft displacement stroke:50~200mm
Current:<1mA	Y Shaft automatic motion module: effective stroke 150mm,
2.Numerical control operating system	Positioning accuracy±0.05mm
Control by 4.3 Touch screen and control system communication	5. Air draft device
3. Liquid supply pump system	Exhaust air volume of the exhaust fan:0.5m³/min
Liquid supply mode: single syringe	7.Heating device
Maximum solution:20ml	Controllable temperature range: room temperature·~45℃
Automatic feeding speed range:0.01~30ml/h	Temperature control speed:≤5min;
Manual feeding speed range:1~80ml/min	8.Sprinkler system
Applicable syringe specifications:1,10,20ml	Single needle nozzle
Can be installed on the side wall or mobile platform	9. Equipment outside shell
4.Nanofiber receiver system	Size:less than 606080cm
Roller collection: effective length 150mm	Colour:light blue
Diameter: ф80mm	Door is transparent colour
Speed: 0······~1000r/min	10.power supply wires
Flat collection:L-shaped 180mm*220mm	220V,吕type triangular plug

Electrospinning technology introduction

Electrospinning technology is the most effective method to prepare nanofibers at present. A variety of aggregates can be obtained, which can make the nanofibers jump out of the application field of traditional nonwoven materials and go deep into the high technology field of high-performance materials, biology, photoelectric and so on. Electrospinning technology has many new advantages over other methods. The electrostatic spinning equipment produced by our company is a kind of ultrafine fiber preparation device based on electrospinning technology using polymer solution or melt injection in strong electric field, to provide customers with a comprehensive, safe, miniaturized spinning equipment, and can be customized according to the different needs of customers.
