professional manufacturer for laboratory equipment
 |
| Place of Origin: | China |
| Brand Name: | RUIMING |
| Certification: | patent |
| Model Number: | SPS-20 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton box and wooden box |
| Delivery Time: | 20-90 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Mould Station Number: | 2 | Double Nose Material: | 2Cr13 |
|---|---|---|---|
| Mold Clamping Force: | 150kg | Pneumatic Mould Clamping Pressure (max T): | 9kg/c㎡ |
| Blow Air Pressure: | 3······~5 Kg/c㎡ | Mould Board Material: | 2Cr13 |
| High Light: | 90mm Automatic Bottle Blowing Machine,42mm Automatic Bottle Blowing Machine,2Cr13 Mould Board blowing machine |
||
Key Technical Parameters of Experimental Mini Automatic Bottle Blowing Machine
| Key technical parameters | SPS-20 |
| Mould station number | 2 |
| Double nose material | 2Cr13 |
| Mold clamping force | 150kg |
| Moulding board size | 90x100mm |
| Maximum mould open size | 90mm |
| Minimum mould open size | 42mm |
| Pneumatic mould clamping pressure (max T) | 9kg/c㎡ |
| Blow air pressure | 3······~5 kg/c㎡ |
| Mould board material | 2Cr13 |
| Main supporting mold | 20ml |

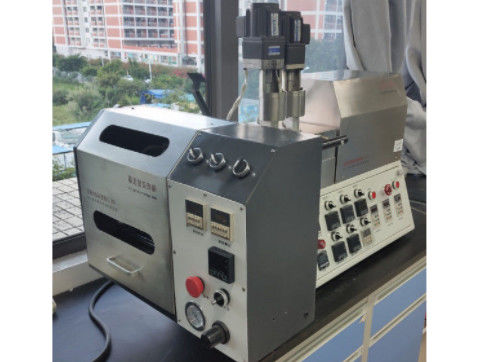

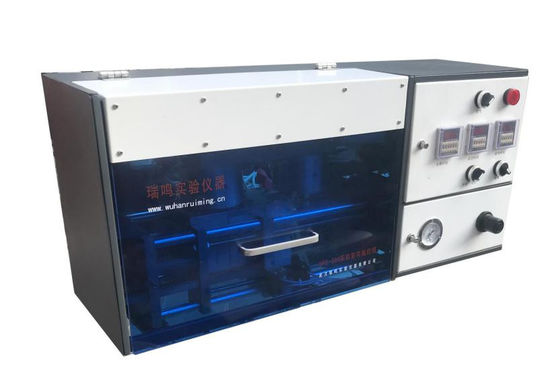

Experimental mini automatic bottle blowing machine
Sps-20 experimental mini automatic bottle blowing machine is an ideal equipment for making bottle blowing experiments or processing teaching
It has the following characteristics:
Ο Small size, light weight, can be operated on the test bench.
Ο High utilization of raw materials, less waste, low energy consumption, suitable for experiment or teaching.
Ο Automatic system, easy to operate, safe to use.
