20ml Mold Automatic Bottle Blowing Machine 42mm To 90mm Mould Open Size

20ml Mold Automatic Bottle Blowing Machine 42mm To 90mm Mould Open Size

  • 20ml Mold Automatic Bottle Blowing Machine 42mm To 90mm Mould Open Size
20ml Mold Automatic Bottle Blowing Machine 42mm To 90mm Mould Open Size
Product Details:
Place of Origin: China
Brand Name: RUIMING
Certification: patent
Model Number: SPS-20
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton box and wooden box
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Maximum Mould Open Size: 90mm Minimum Mould Open Size: 42mm
Pneumatic Mould Clamping Pressure (max T): 9kg/c㎡ Blow Air Pressure: 3······~5 Kg/c㎡
Mould Board Material: 2Cr13 Main Supporting Mold: 20ml
High Light:

20ml Automatic Bottle Blowing Machine


Automatic Bottle Blowing Machine 42mm


90mm Auto Bottle Blowing Machine

Experimental Mini Automatic Bottle Blowing Machine


Wuhan Ruiming Experimental Instrument Manufacturing Co., Ltd. successfully developed and issued laboratory mini-twin screw extruder and laboratory mini-injection molding machine series products which with advanced technology both in domestic and aboard. The series of mico extruder and micro injection machine have achieved and surpassed the technology level of similar foreign products such as HAAKE MiniLab, MiniJet and DSM Xplore in many aspects, but with high cost performance, they are ideal imported alternative products. Especially suitable for laboratory research of university and development department of enterprise, in addition to domestic universities, research units, company research and development department, our products also exported to the United States, Canada, Russia, Saudi Arabia, Azerbaijan and so on.


Key Technical Parameters of Experimental Mini Automatic Bottle Blowing Machine


Key technical parameters SPS-20
Mould station number 2
Double nose material 2Cr13
Mold clamping force 150kg
Moulding board size 90x100mm
Maximum mould open size 90mm
Minimum mould open size 42mm
Pneumatic mould clamping pressure (max T) 9kg/c㎡
Blow air pressure 3······~5 kg/c㎡
Mould board material 2Cr13
Main supporting mold 20ml

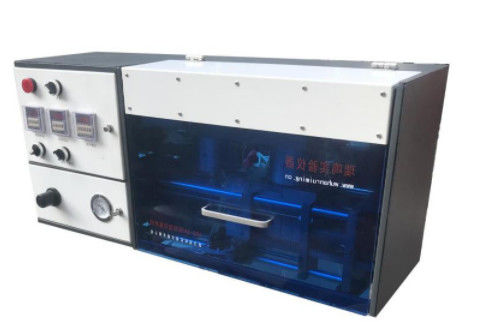

Experimental mini automatic bottle blowing machine


Sps-20 experimental mini automatic bottle blowing machine is an ideal equipment for making bottle blowing experiments or processing teaching

It has the following characteristics:

Ο Small size, light weight, can be operated on the test bench.

Ο High utilization of raw materials, less waste, low energy consumption, suitable for experiment or teaching.

Ο Automatic system, easy to operate, safe to use.
