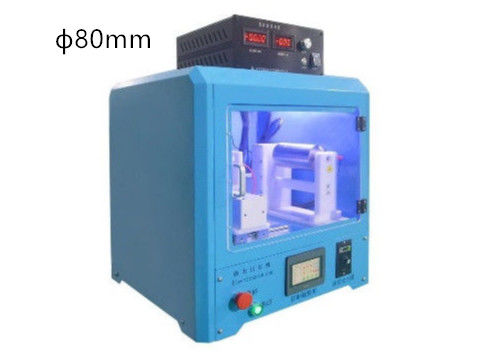

Dia 80mm 1000rpm Electrospinning Equipment Single Needle Nozzle

Dia 80mm 1000rpm Electrospinning Equipment Single Needle Nozzle

  • Dia 80mm 1000rpm Electrospinning Equipment Single Needle Nozzle
Dia 80mm 1000rpm Electrospinning Equipment Single Needle Nozzle
Product Details:
Place of Origin: China
Brand Name: RUIMING
Model Number: E02-001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton box and wooden box
Delivery Time: 30-90DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Roller Collection: Effective Length 150mm Diameter: ф80mm
Speed: 0······~1000r/min Flat Collection: L-shaped 180mm*220mm
Controllable Temperature Range: Room Temperature·~45℃ Sprinkler System: Single Needle Nozzle
High Light:

1000rpm Electrospinning Equipment

,

Dia 80mm Electrospinning Equipment

,

Single Needle Nozzle Electrospinning machine

Professional Electrospinning Equipment



Wuhan Ruiming Experimental Instrument Manufacturing Co., Ltd. successfully developed and issued laboratory mini-twin screw extruder and laboratory mini-injection molding machine series products which with advanced technology both in domestic and aboard. The series of mico extruder and micro injection machine have achieved and surpassed the technology level of similar foreign products such as HAAKE MiniLab, MiniJet and DSM Xplore in many aspects, but with high cost performance, they are ideal imported alternative products. Especially suitable for laboratory research of university and development department of enterprise, in addition to domestic universities, research units, company research and development department, our products also exported to the United States, Canada, Russia, Saudi Arabia, Azerbaijan and so on.



Advantages of Professional Electrospinning Equipment



E02-001 Professional electrospinning equipment
1. High voltage power supply system 5. X-Y Axial displacement motion system
Voltage DC:0······~30KV X Shaft displacement stroke:50~200mm
Current:<1mA Y Shaft automatic motion module: effective stroke 150mm,
2.Numerical control operating system Positioning accuracy±0.05mm
Control by 4.3 Touch screen and control system communication 5. Air draft device
3. Liquid supply pump system Exhaust air volume of the exhaust fan:0.5m³/min
Liquid supply mode: single syringe 7.Heating device
Maximum solution:20ml Controllable temperature range: room temperature·~45℃
Automatic feeding speed range:0.01~30ml/h Temperature control speed:≤5min;
Manual feeding speed range:1~80ml/min 8.Sprinkler system
Applicable syringe specifications:1,10,20ml Single needle nozzle
Can be installed on the side wall or mobile platform 9. Equipment outside shell
4.Nanofiber receiver system Size:less than 60*60*80cm
Roller collection: effective length 150mm Colour:light blue
Diameter: ф80mm Door is transparent colour
Speed: 0······~1000r/min 10.power supply wires
Flat collection:L-shaped 180mm*220mm 220V,吕type triangular plug
