professional manufacturer for laboratory equipment
 |
| Place of Origin: | China |
| Brand Name: | RUIMING |
| Model Number: | E02-001 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton box and wooden box |
| Delivery Time: | 30-90DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 200 sets per month |
| Liquid Supply Mode: | Single Syringe | Maximum Solution: | 20ml |
|---|---|---|---|
| Automatic Feeding Speed Range: | 0.01~30ml/h | X Shaft Displacement Stroke: | 50~200mm |
| Y Shaft Automatic Motion Module: | Effective Stroke 150mm | Positioning Accuracy: | ±0.05mm |
| High Light: | RUIMING electrospinning equipment,Numerical Control Electrospinning Equipment,30ml/h Electrospinning machine |
||

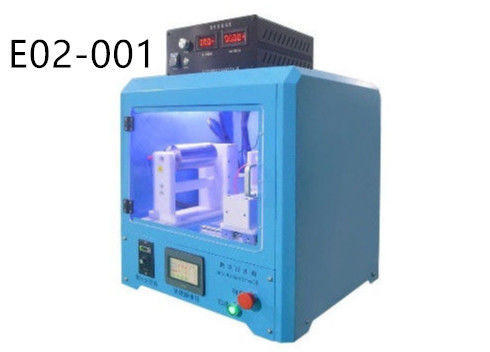

Professional Electrospinning Equipment
Wuhan Ruiming Plastic Machinery Co., Ltd. is located in wuhan, the historical and cultural city, the capital of Hubei province, which was established in 2001. The company is a professional manufacturer of polymer experimental equipment, specializing in the production of miniature double-cone twin-screw screw extruder, experimental micro-extruder, micro-injection machine, micro-high tensile ratio spinning machine, micro-extrusion unit, micro-granulator unit and experimental plastic blowing machine series products and so on. The company also successfully developed and issued the leading level of laboratory mini twin screw extruder and laboratory mini injection molding machine series products. Main performance indicators of the series of mini extruder and mini injection machine have achieved and surpassed the level of similar foreign products such as HAAKE MiniLab and DSM Xplore in many aspects, but have high cost performance. Especially suitable for the laboratory research needs of universities and enterprise R&D departments.
Advantages of Professional Electrospinning Equipment
| E02-001 Professional electrospinning equipment | |
| 1. High voltage power supply system | 5. X-Y Axial displacement motion system |
| Voltage DC:0······~30KV | X Shaft displacement stroke:50~200mm |
| Current:<1mA | Y Shaft automatic motion module: effective stroke 150mm, |
| 2.Numerical control operating system | Positioning accuracy±0.05mm |
| Control by 4.3 Touch screen and control system communication | 5. Air draft device |
| 3. Liquid supply pump system | Exhaust air volume of the exhaust fan:0.5m³/min |
| Liquid supply mode: single syringe | 7.Heating device |
| Maximum solution:20ml | Controllable temperature range: room temperature·~45℃ |
| Automatic feeding speed range:0.01~30ml/h | Temperature control speed:≤5min; |
| Manual feeding speed range:1~80ml/min | 8.Sprinkler system |
| Applicable syringe specifications:1,10,20ml | Single needle nozzle |
| Can be installed on the side wall or mobile platform | 9. Equipment outside shell |
| 4.Nanofiber receiver system | Size:less than 60*60*80cm |
| Roller collection: effective length 150mm | Colour:light blue |
| Diameter: ф80mm | Door is transparent colour |
| Speed: 0······~1000r/min | 10.power supply wires |
| Flat collection:L-shaped 180mm*220mm | 220V,type triangular plug |
