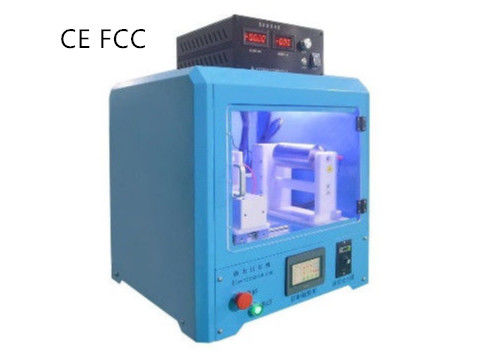

CE FCC Small Tabletop Electrospinning Equipment 150mm Effective Collection Width

Name: CE FCC Small Tabletop Electrospinning Equipment 150mm Effective Collection Width
Brand: Wuhan Ruiming Experimental Instrument
SKU: E02-001
Availability: InStock

Brand Name:	RUIMING
Model Number:	E02-001
MOQ:	1pcs
Price:	Negotiable
Delivery Time:	20-90 days after order confirmed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/FCC

Voltage DC:

0······~30KV

Current:

<1mA

Liquid Supply Mode:

Single Syringe

Applicable Syringe Specifications:

1,10,20ml

Maximum Solution:

20ml

Automatic Feeding Speed Range:

0.01~30ml/h

Packaging Details:

carton box and wooden box

Supply Ability:

200 sets per month

Highlight:

Tabletop Electrospinning Equipment

CE FCC Small Electrospinning Equipment

150mm Width Electrospinning device

Product Description

Professional Electrospinning Equipment

Characteristics of Electrospinning Equipment

Professional electrospinning equipment E02 is a laboratory electrospinning equipment for scientific research, which can be used to make nanofiber membranes with filament diameter of tens to hundreds.

Product features:

Tabletop type, small size;

Excellent performance, professional laboratory version;

CE/FCC certification;

The temperature and humidity environment suitable for spinning can be achieved by heating and dehumidifying device.

4.3-inch CNC touch screen, integrated operation;

High cost performance, namely buy and use;

Spinning voltage: 0-30kV

Equipped with barrel, plate which can be used as collecting device;

Effective collection width of 150mm

Specifications of E02-001 Professional Electrospinning Equipment

E02-001 Professional electrospinning equipment
1. High voltage power supply system	5. X-Y Axial displacement motion system
Voltage DC:0······~30KV	X Shaft displacement stroke:50~200mm
Current:<1mA	Y Shaft automatic motion module: effective stroke 150mm,
2.Numerical control operating system	Positioning accuracy±0.05mm
Control by 4.3 Touch screen and control system communication	5. Air draft device
3. Liquid supply pump system	Exhaust air volume of the exhaust fan:0.5m³/min
Liquid supply mode: single syringe	7.Heating device
Maximum solution:20ml	Controllable temperature range: room temperature·~45℃
Automatic feeding speed range:0.01~30ml/h	Temperature control speed:≤5min;
Manual feeding speed range:1~80ml/min	8.Sprinkler system
Applicable syringe specifications:1,10,20ml	Single needle nozzle
Can be installed on the side wall or mobile platform	9. Equipment outside shell
4.Nanofiber receiver system	Size:less than 606080cm
Roller collection: effective length 150mm	Colour:light blue
Diameter: ф80mm	Door is transparent colour
Speed: 0······~1000r/min	10.power supply wires
Flat collection:L-shaped 180mm*220mm	220V,吕type triangular plug
