12g Desktop Micro Lab Compounding Extruder For Teaching Researching

12g Desktop Micro Lab Compounding Extruder For Teaching Researching

  • 12g Desktop Micro Lab Compounding Extruder For Teaching Researching
12g Desktop Micro Lab Compounding Extruder For Teaching Researching
Product Details:
Place of Origin: China
Brand Name: RUIMING
Certification: patent
Model Number: SJZS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton box and wooden box
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Screw Diameter (mm): 10/30 Screw Thread Length (mm): 190/250
The Screw Rotation Speed (rpm): 70/51 Barrel Form: Can Open
Main Motor Power( Kw): 0.75 Circulating Extrusion Dosage (g/per Time): 15-18(auto Control)
High Light:

12g Lab Compounding Extruder

,

240mm Lab Compounding Extruder

,

Desktop twin screw compounder

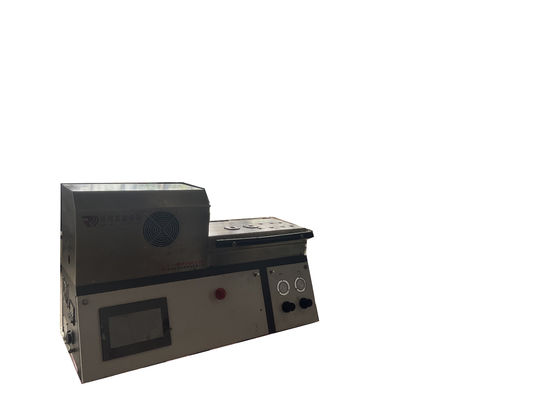

Desktop Lab Micro Compound Extruder For Teaching And Reasearching



laboratory miniature twin screw extruder is a series of small twin screw extruder products recently developed by our company. Test can be conducted with only a small amount of materials. It is especially suitable for the laboratory research of polymer and other materials in universities and enterprises. The main performance of the series extruders has reached the level of similar foreign products such as HAAKE MiniLab and DSM Xplore, but with high cost performance. The main features of the product: small size, the size of the main machine is about 710×380×240(mm), can be directly placed on the experimental table; Material saving, low energy consumption, low experimental cost; The cylinder adopts unique backflow channel design, which can accurately control the plasticizing time and degree of test materials. Adopt unique open cylinder design, can easily observe the test effect, and can be convenient for cleaning after the test. When used in conjunction with our laboratory micro-injection molding machine, the experimental material can be directly extruded into the injection cylinder of the micro-injection molding machine to produce spline products conveniently. Extrusion capacity: Max 12g.



Key Technical Parameters of Desktop Lab Micro Compound Extruder





Key Technical Parameters SJZS-7A SJZS-10A SJZS-10B SJZS-10Z
Screw diameter (mm) 7/25 10/30 10/30 10/30
Screw thread length (mm) 190 190 250 190
The screw rotation speed (rpm) 70 51 51 51
Barrel form Can open Can open Can open Can open
Main motor power( kw) 0.55 0.75 0.75 0.75
Circulating extrusion dosage (g/per time) 5-10(manual control) 15-18(auto control) 15-18(auto control) without
Direct extrusion dosage (max kg/h) 0.45 1.5 1.5 1.5
Heating temperature (max ℃) 450 450 450 450
Feed 1 power (W) without 25(optional) 25 25
Feed 2 power ( W) without without 25 without
Power of vacuum exhaust and dehumidification device (W) without without 180(optional) without
Nitrogen protection have have have have
size (mm) 800X350X580 800X350X580 850X350X580 800X350X580




Key Technical Parameters SJZS-20 SJZS-20A
Screw diameter (mm) 20/40 20/53
Screw thread length (mm) 390 480
The screw rotation speed (rpm) 0-50 51
Barrel form Do not open Do not open
Main motor power( kw) 1.5 2.2
Circulating extrusion dosage (g/per time) without without
Direct extrusion dosage (max kg/h) 6 6
Heating power (kw) 4.5 5
Feed 1 power (W) 25(optional) 25
Feed 2 power (W) without 25
Power of vacuum exhaust and dehumidification device (W) 250(optional) 250(optional)
Nitrogen protection have have
Size (mm) 1020x450x600 1120x450x600
