Laboratory Mini Plastic Extrusion Equipment Compounding 30mm Screw Diameter

Name: Laboratory Mini Plastic Extrusion Equipment Compounding 30mm Screw Diameter
Brand: Wuhan Ruiming Experimental Instrument
SKU: SJZS
Availability: InStock

Brand Name:	RUIMING
Model Number:	SJZS
MOQ:	1pcs
Price:	Negotiable
Delivery Time:	20-90 days after order confirmed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

patent

Screw Diameter (mm):

20/53

Screw Thread Length (mm):

480

The Screw Rotation Speed (rpm):

70/51

Barrel Form:

Do Not Open

Main Motor Power( Kw):

2.2

Direct Extrusion Dosage (max Kg/h):

Packaging Details:

carton box and wooden box

Supply Ability:

200 sets per month

Highlight:

Laboratory Mini Plastic Extrusion Equipment

30mm Screw Diameter Plastic Extrusion Equipment

Product Description

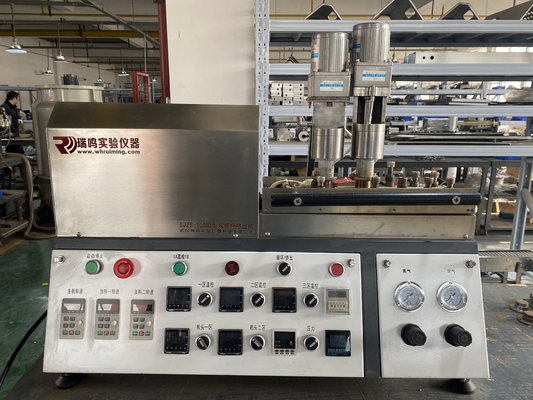

Laboratory Mini Plastic Extrusion Equipment Compounding 30mm Screw Diameter

The Laboratory Mini Plastic Extrusion Equipment Compounding is a necessary and economical equipment for lab, it is mainly used for experiment that testing the melting temperature and chemical properties of the thermo-plastic such as PVC, PPR, PE , PP , HDPE, LDPE, masterbatch and other Polymer material.

according to different raw material, the conical double screw, single screw extruder is optional. With different mini mould and auxiliary machine, can test film, sheet, tube and other product.

1. low consumption,

2. high quality screw and barrel (38CrMoAlA, nitriding), long service time.

3. with PLC control, full automatic, easy operation.

4. wide use, with different molds, different use.

5.specially design, with wheel, convenient to move.

Technical parameter of Laboratory Mini Plastic Extrusion Equipment Compounding

Key Technical Parameters	SJZS-7A	SJZS-10A	SJZS-10B	SJZS-10Z
Screw diameter (mm)	7/25	10/30	10/30	10/30
Screw thread length (mm)	190	190	250	190
The screw rotation speed (rpm)	70	51	51	51
Barrel form	Can open	Can open	Can open	Can open
Main motor power( kw)	0.55	0.75	0.75	0.75
Circulating extrusion dosage (g/per time)	5-10(manual control)	15-18(auto control)	15-18(auto control)	without
Direct extrusion dosage (max kg/h)	0.45	1.5	1.5	1.5
Heating temperature (max ℃)	450	450	450	450
Feed 1 power (W)	without	25(optional)	25	25
Feed 2 power ( W)	without	without	25	without
Power of vacuum exhaust and dehumidification device (W)	without	without	180(optional)	without
Nitrogen protection	have	have	have	have
size (mm)	800X350X580	800X350X580	850X350X580	800X350X580

Key Technical Parameters	SJZS-20	SJZS-20A
Screw diameter (mm)	20/40	20/53
Screw thread length (mm)	390	480
The screw rotation speed (rpm)	0-50	51
Barrel form	Do not open	Do not open
Main motor power( kw)	1.5	2.2
Circulating extrusion dosage (g/per time)	without	without
Direct extrusion dosage (max kg/h)	6	6
Heating power (kw)	4.5	5
Feed 1 power (W)	25(optional)	25
Feed 2 power (W)	without	25
Power of vacuum exhaust and dehumidification device (W)	250(optional)	250(optional)
Nitrogen protection	have	have
Size (mm)	1020x450x600	1120x450x600
