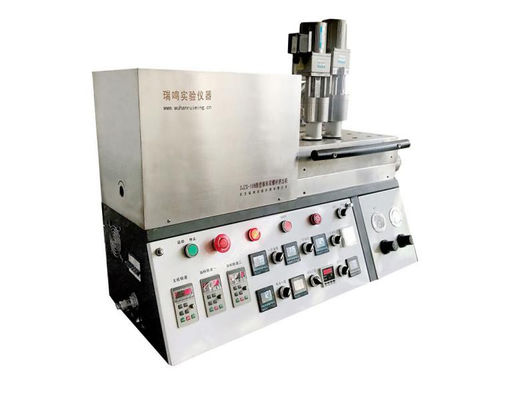

Composite Materials Lab Compounding Extruder 800X350X580mm

Name: Composite Materials Lab Compounding Extruder 800X350X580mm
Brand: Wuhan Ruiming Experimental Instrument
SKU: SJZS
Availability: InStock

Brand Name:	RUIMING
Model Number:	SJZS
MOQ:	1pcs
Price:	Negotiable
Delivery Time:	20-90 days after order confirmed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

patent

Heating Temperature (max ℃):

450

Feed 1 Power (W):

Feed 2 Power ( W):

Power Of Vacuum Exhaust And Dehumidification Device (W):

180(optional)

Nitrogen Protection:

Have

Size (mm):

800X350X580

Packaging Details:

carton box and wooden box

Supply Ability:

200 sets per month

Highlight:

Composite Materials Lab Compounding Extruder

Lab Compounding Extruder 800mm

580mm Plastic compound extruder

Product Description

Lab Compounding Composite Materials Extruder

Wuhan Ruiming Plastic Machinery Co., Ltd. is located in wuhan, the historical and cultural city, the capital of Hubei province, which was established in 2001. The company is a professional manufacturer of polymer experimental equipment, specializing in the production of miniature double-cone twin-screw screw extruder, experimental micro-extruder, micro-injection machine, micro-high tensile ratio spinning machine, micro-extrusion unit, micro-granulator unit and experimental plastic blowing machine series products and so on. The company also successfully developed and issued the leading level of laboratory mini twin screw extruder and laboratory mini injection molding machine series products. Main performance indicators of the series of mini extruder and mini injection machine have achieved and surpassed the level of similar foreign products such as HAAKE MiniLab and DSM Xplore in many aspects, but have high cost performance. Especially suitable for the laboratory research needs of universities and enterprise R&D departments,

Key Technical Parameters of Lab Compounding Composite Materials Extruder

Key Technical Parameters	SJZS-7A	SJZS-10A	SJZS-10B	SJZS-10Z
Screw diameter (mm)	7/25	10/30	10/30	10/30
Screw thread length (mm)	190	190	250	190
The screw rotation speed (rpm)	70	51	51	51
Barrel form	Can open	Can open	Can open	Can open
Main motor power( kw)	0.55	0.75	0.75	0.75
Circulating extrusion dosage (g/per time)	5-10(manual control)	15-18(auto control)	15-18(auto control)	without
Direct extrusion dosage (max kg/h)	0.45	1.5	1.5	1.5
Heating temperature (max ℃)	450	450	450	450
Feed 1 power (W)	without	25(optional)	25	25
Feed 2 power ( W)	without	without	25	without
Power of vacuum exhaust and dehumidification device (W)	without	without	180(optional)	without
Nitrogen protection	have	have	have	have
size (mm)	800X350X580	800X350X580	850X350X580	800X350X580

Key Technical Parameters	SJZS-20	SJZS-20A
Screw diameter (mm)	20/40	20/53
Screw thread length (mm)	390	480
The screw rotation speed (rpm)	0-50	51
Barrel form	Do not open	Do not open
Main motor power( kw)	1.5	2.2
Circulating extrusion dosage (g/per time)	without	without
Direct extrusion dosage (max kg/h)	6	6
Heating power (kw)	4.5	5
Feed 1 power (W)	25(optional)	25
Feed 2 power (W)	without	25
Power of vacuum exhaust and dehumidification device (W)	250(optional)	250(optional)
Nitrogen protection	have	have
Size (mm)	1020x450x600	1120x450x600
