Nanomaterials Twin Screw Lab Compounding Extruder Dia 25mm To 53mm

Name: Nanomaterials Twin Screw Lab Compounding Extruder Dia 25mm To 53mm
Brand: Wuhan Ruiming Experimental Instrument
SKU: SJZS
Availability: InStock

Brand Name:	RUIMING
Model Number:	SJZS
MOQ:	1pcs
Price:	Negotiable
Delivery Time:	20-90 days after order confirmed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

patent

Main Material:

Stainless Steel

Feeding:

Two Feeding Port

Characteristic:

Desktop

Apply:

Polymer Material

Customize:

Customizable

Used Site:

Laboratory

Packaging Details:

carton box and wooden box

Supply Ability:

200 sets per month

Highlight:

Lab Compounding Extruder Dia 25mm

Nanomaterials Lab Compounding Extruder

53mm twin screw compounding extruder

Product Description

Lab Compouding Extruder Nanomaterials

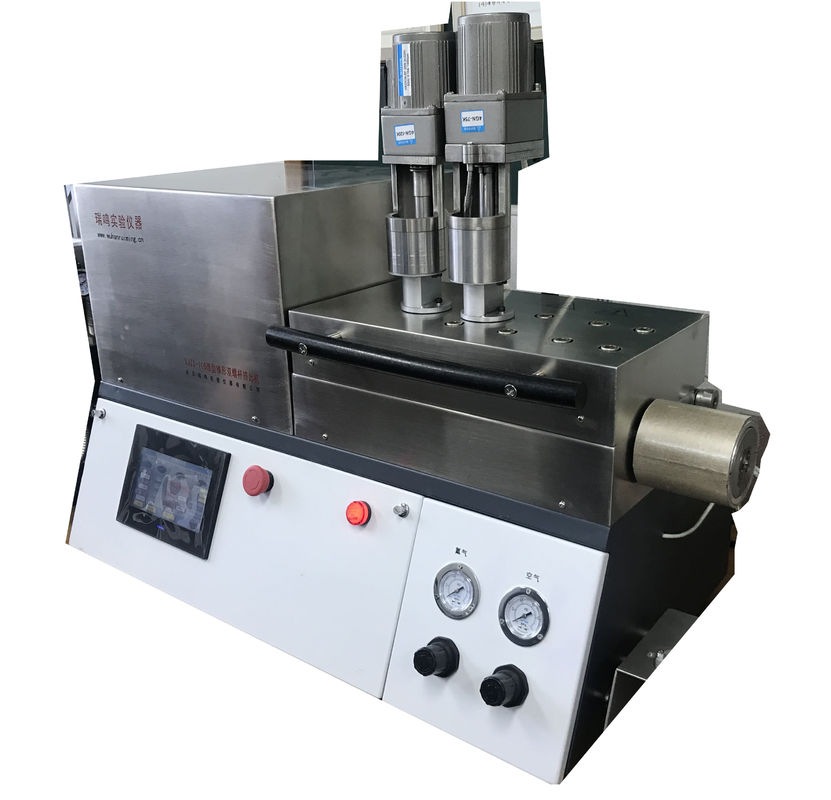

Series of advanced Laboratory miniature conical twin screw mixing extruders provide minimum amount of sample mixing and sample preparation methods of researching materials in laboratories and other related fields. Because of the unique design of the screw, it can achieve the best mixing effect, especially for the samples that are difficult to completely mix or need a good mixing effect, such as: polymer materials, nanomaterials, drugs, food and other formula research. Especially suitable for formulations where certain ingredients are particularly expensive or difficult to obtain.

Key Technical Parameters of Laboratory miniature conical twin screw mixing extruders

Key Technical Parameters	SJZS-7A	SJZS-10A	SJZS-10B	SJZS-10Z
Screw diameter (mm)	7/25	10/30	10/30	10/30
Screw thread length (mm)	190	190	250	190
The screw rotation speed (rpm)	70	51	51	51
Barrel form	Can open	Can open	Can open	Can open
Main motor power( kw)	0.55	0.75	0.75	0.75
Circulating extrusion dosage (g/per time)	5-10(manual control)	15-18(auto control)	15-18(auto control)	without
Direct extrusion dosage (max kg/h)	0.45	1.5	1.5	1.5
Heating temperature (max ℃)	450	450	450	450
Feed 1 power (W)	without	25(optional)	25	25
Feed 2 power ( W)	without	without	25	without
Power of vacuum exhaust and dehumidification device (W)	without	without	180(optional)	without
Nitrogen protection	have	have	have	have
size (mm)	800X350X580	800X350X580	850X350X580	800X350X580

Key Technical Parameters	SJZS-20	SJZS-20A
Screw diameter (mm)	20/40	20/53
Screw thread length (mm)	390	480
The screw rotation speed (rpm)	0-50	51
Barrel form	Do not open	Do not open
Main motor power( kw)	1.5	2.2
Circulating extrusion dosage (g/per time)	without	without
Direct extrusion dosage (max kg/h)	6	6
Heating power (kw)	4.5	5
Feed 1 power (W)	25(optional)	25
Feed 2 power (W)	without	25
Power of vacuum exhaust and dehumidification device (W)	250(optional)	250(optional)
Nitrogen protection	have	have
Size (mm)	1020x450x600	1120x450x600
