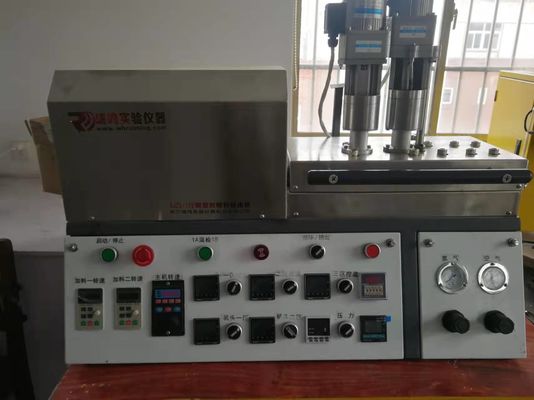

OEM 40mm Screw Laboratory Mixing Extruder Nano Scale Polymer Material Lab Extruder

OEM 40mm Screw Laboratory Mixing Extruder Nano Scale Polymer Material Lab Extruder

OEM 40mm Screw Laboratory Mixing Extruder Nano Scale Polymer Material Lab Extruder
OEM 40mm Screw Laboratory Mixing Extruder Nano Scale Polymer Material Lab Extruder
OEM 40mm Screw Laboratory Mixing Extruder Nano Scale Polymer Material Lab Extruder
Product Details:
Place of Origin: China
Brand Name: RUIMING
Certification: patent
Model Number: SJZS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton box and wooden box
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Screw Diameter (mm): 20/40 Screw Thread Length (mm): 390
The Screw Rotation Speed (rpm): 0-50 Barrel Form: Do Not Open
Main Motor Power( Kw): 1.5 Circulating Extrusion Dosage (g/per Time): Without
High Light:

40mm Screw Laboratory Mixing Extruder

,

OEM Laboratory Mixing Extruder

,

Nano Polymer Material Lab Scale Extruder

Laboratory Mixing Extruder For Nano-Polymer Material



The company is a professional manufacturer of polymer experimental equipment, specializing in the production of experimental micro extruder, micro injection machine, micro high tensile ratio spinning machine, micro tube extrusion unit, micro grain cutting unit and experimental plastic blowing machine series products, etc.



Screw Diameter (mm): 20/40 Screw Thread Length (mm): 390
The Screw Rotation Speed (rpm): 0-50 Barrel Form: Do Not Open
Main Motor Power( Kw): 1.5 Circulating Extrusion Dosage (g/per Time): Without



Parameters of Laboratory Mixing Extruder For Nano-Polymer Material



Key Technical Parameters SJZS-7A SJZS-10A SJZS-10B SJZS-10Z
Screw diameter (mm) 7/25 10/30 10/30 10/30
Screw thread length (mm) 190 190 250 190
The screw rotation speed (rpm) 70 51 51 51
Barrel form Can open Can open Can open Can open
Main motor power( kw) 0.55 0.75 0.75 0.75
Circulating extrusion dosage (g/per time) 5-10(manual control) 15-18(auto control) 15-18(auto control) without
Direct extrusion dosage (max kg/h) 0.45 1.5 1.5 1.5
Heating temperature (max ℃) 450 450 450 450
Feed 1 power (W) without 25(optional) 25 25
Feed 2 power ( W) without without 25 without
Power of vacuum exhaust and dehumidification device (W) without without 180(optional) without
Nitrogen protection have have have have
size (mm) 800X350X580 800X350X580 850X350X580 800X350X580




Key Technical Parameters SJZS-20 SJZS-20A
Screw diameter (mm) 20/40 20/53
Screw thread length (mm) 390 480
The screw rotation speed (rpm) 0-50 51
Barrel form Do not open Do not open
Main motor power( kw) 1.5 2.2
Circulating extrusion dosage (g/per time) without without
Direct extrusion dosage (max kg/h) 6 6
Heating power (kw) 4.5 5
Feed 1 power (W) 25(optional) 25
Feed 2 power (W) without 25
Power of vacuum exhaust and dehumidification device (W) 250(optional) 250(optional)
Nitrogen protection have have
Size (mm) 1020x450x600 1120x450x600
