PVC PE Twin Screw Laboratory Mixing Extruder 190mm 250m Screw Thread Length

PVC PE Twin Screw Laboratory Mixing Extruder 190mm 250m Screw Thread Length

  • PVC PE Twin Screw Laboratory Mixing Extruder 190mm 250m Screw Thread Length
PVC PE Twin Screw Laboratory Mixing Extruder 190mm 250m Screw Thread Length
Product Details:
Place of Origin: China
Brand Name: RUIMING
Certification: patent
Model Number: SJZS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton box and wooden box
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Barrel Form: Can Open Screw Diameter (mm): 10/30
Screw Thread Length (mm): 190/250 The Screw Rotation Speed (rpm): 70/51
Main Motor Power( Kw): 1.5 Direct Extrusion Dosage (max Kg/h): 1.5
High Light:

PVC PE Laboratory Mixing Extruder

,

190mm Screw Laboratory Mixing Extruder

,

250m laboratory twin screw extruder

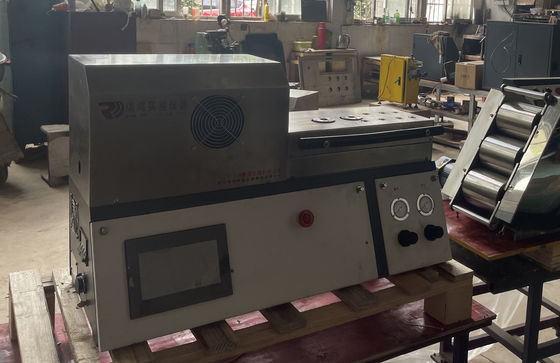

Mini Extruder/Small Plastic Extruder/Lab Scale Extruder For test



1,Simple description:



The twin screw Lab Scale Extruder is mainly used for experiment, that used for testing and extruding thermo-plastic such as soft hard polyvinyl chloride (PVC) and polystyrene(PE) coordinated with the appropriate auxiliary machine,(including the die).

SJZS Twin Screw Lab Extruder is advanced in design, good in plasticization and low in energy consumption. The extruder is characterized by low noise, stable working, big bearing capacity and long service life.

Barrel Form: Can Open Screw Diameter (mm): 10/30
Screw Thread Length (mm): 190/250 The Screw Rotation Speed (rpm): 70/51
Main Motor Power( Kw): 1.5 Direct Extrusion Dosage (max Kg/h): 1.5



Parameter of Laboratory Mixing Extruder



Key Technical Parameters SJZS-7A SJZS-10A SJZS-10B SJZS-10Z
Screw diameter (mm) 7/25 10/30 10/30 10/30
Screw thread length (mm) 190 190 250 190
The screw rotation speed (rpm) 70 51 51 51
Barrel form Can open Can open Can open Can open
Main motor power( kw) 0.55 0.75 0.75 0.75
Circulating extrusion dosage (g/per time) 5-10(manual control) 15-18(auto control) 15-18(auto control) without
Direct extrusion dosage (max kg/h) 0.45 1.5 1.5 1.5
Heating temperature (max ℃) 450 450 450 450
Feed 1 power (W) without 25(optional) 25 25
Feed 2 power ( W) without without 25 without
Power of vacuum exhaust and dehumidification device (W) without without 180(optional) without
Nitrogen protection have have have have
size (mm) 800X350X580 800X350X580 850X350X580 800X350X580





Key Technical Parameters SJZS-20 SJZS-20A
Screw diameter (mm) 20/40 20/53
Screw thread length (mm) 390 480
The screw rotation speed (rpm) 0-50 51
Barrel form Do not open Do not open
Main motor power( kw) 1.5 2.2
Circulating extrusion dosage (g/per time) without without
Direct extrusion dosage (max kg/h) 6 6
Heating power (kw) 4.5 5
Feed 1 power (W) 25(optional) 25
Feed 2 power (W) without 25
Power of vacuum exhaust and dehumidification device (W) 250(optional) 250(optional)
Nitrogen protection have have
Size (mm) 1020x450x600 1120x450x600
