Viscous Abrasive Plastic Laboratory Mixing Extruder Conical Twin Screw Extruder

Viscous Abrasive Plastic Laboratory Mixing Extruder Conical Twin Screw Extruder

  • Viscous Abrasive Plastic Laboratory Mixing Extruder Conical Twin Screw Extruder
Viscous Abrasive Plastic Laboratory Mixing Extruder Conical Twin Screw Extruder
Product Details:
Place of Origin: China
Brand Name: RUIMING
Certification: patent
Model Number: SJZS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton box and wooden box
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Screw Diameter (mm): 10/30 Screw Thread Length (mm): 190/250
The Screw Rotation Speed (rpm): 70/51 Nitrogen Protection: Have
High Light:

Viscous Abrasive Plastic Laboratory Extruder

,

Conical Laboratory Mixing Extruder

,

30mm conical twin screw extruder

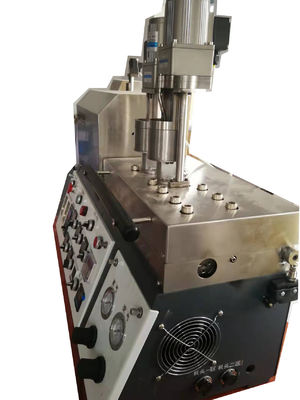

Laboratory Miniature conical twin screw extruder used in experiment for viscious abrasive plastic material



Application:



Ruiming SJZS extruder absorbs the design of the miniature conical twin-screw extruder for experiment developed and produced by foreign advanced technology as well as the instrumentalized design, which can be used on the desktop with less materials, beautiful appearance, simple structure, small volume and light weight.In particular, the configuration of circular extrusion and twin screw feeding ways makes the change of materials in different temperature and pressure at different intervals clear and convenient for disassembly and cleaning.It is an ideal equipment for polymer research and material testing in universities and scientific research institutions.



Parameter of Laboratory Mixing Extruder





Key Technical Parameters SJZS-7A SJZS-10A SJZS-10B SJZS-10Z
Screw diameter (mm) 7/25 10/30 10/30 10/30
Screw thread length (mm) 190 190 250 190
The screw rotation speed (rpm) 70 51 51 51
Barrel form Can open Can open Can open Can open
Main motor power( kw) 0.55 0.75 0.75 0.75
Circulating extrusion dosage (g/per time) 5-10(manual control) 15-18(auto control) 15-18(auto control) without
Direct extrusion dosage (max kg/h) 0.45 1.5 1.5 1.5
Heating temperature (max ℃) 450 450 450 450
Feed 1 power (W) without 25(optional) 25 25
Feed 2 power ( W) without without 25 without
Power of vacuum exhaust and dehumidification device (W) without without 180(optional) without
Nitrogen protection have have have have
size (mm) 800X350X580 800X350X580 850X350X580 800X350X580




Key Technical Parameters SJZS-20 SJZS-20A
Screw diameter (mm) 20/40 20/53
Screw thread length (mm) 390 480
The screw rotation speed (rpm) 0-50 51
Barrel form Do not open Do not open
Main motor power( kw) 1.5 2.2
Circulating extrusion dosage (g/per time) without without
Direct extrusion dosage (max kg/h) 6 6
Heating power (kw) 4.5 5
Feed 1 power (W) 25(optional) 25
Feed 2 power (W) without 25
Power of vacuum exhaust and dehumidification device (W) 250(optional) 250(optional)
Nitrogen protection have have
Size (mm) 1020x450x600 1120x450x600
