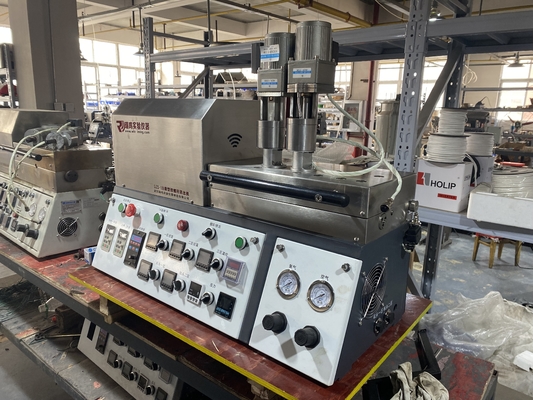

Lab Small Twin Screw Extrusion Machine 15-18g Extrusion

Lab Small Twin Screw Extrusion Machine 15-18g Extrusion

Lab Small Twin Screw Extrusion Machine 15-18g Extrusion
Lab Small Twin Screw Extrusion Machine 15-18g Extrusion
Lab Small Twin Screw Extrusion Machine 15-18g Extrusion
Product Details:
Place of Origin: China
Brand Name: RUIMING
Certification: patent
Model Number: SJZS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton box and wooden box
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Screw Diameter (mm): 20/40 Screw Thread Length (mm): 390
Cyclic Extrusion Dosage (g/time): 15-18 Heating Temperature (max ℃): 450
Main Motor Power( Kw): 1.5 Nitrogen Protection: Have
High Light:

Lab Twin Screw Extrusion Machine

,

18g Twin Screw Extrusion Machine

Lab Small Twin Screw Extrusion Machine 15-18g Extrusion



Characteristics of the Twin Screw Laboratory Micro Extruder Special High Temperature Polymer Material



1. low consumption,

2. high quality screw and barrel (38CrMoAlA, nitriding), long service time.

3. with PLC control, full automatic, easy operation.

4. wide use, with different molds, different use.

5.specially design, with wheel, convenient to move.



Key technical parameters of Lab Small Twin Screw Extrusion Machine



Key technical parameters SJZS-7A SJZS-10A SJZS-10B GJZS-10 series
Screw diameter (small/big head)(mm) 7/25 10/30 10/30 10/33
Length of screw thread mm 190 250 250 340
The screw rotation speed rpm 70 51 51 51
Barrel form Can open Can open Can open Can not open
Main motor power(kw) 0.55 0.75 0.75 0.75
Cyclic extrusion dosage (g/time) 5-10(automatic control) 15-18(automatic control) 15-18(automatic control) no
Direct extrusion dosage (max kg/h) 0.45 1.5 1.5 1.5
Heating temperature (max ℃) 450 450 450 450
Feed I power 25 25 25 25
Feeder quantity 1 1 2(customization) customizable
Power of vacuum exhaust and dehumidifier (W) no no 180(optional) 180(optional)
Nitrogen protection Have Have Have Have
Overall dimensions (mm) 800x350x580 860x350x580 860x380x580 820x350x580



Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
