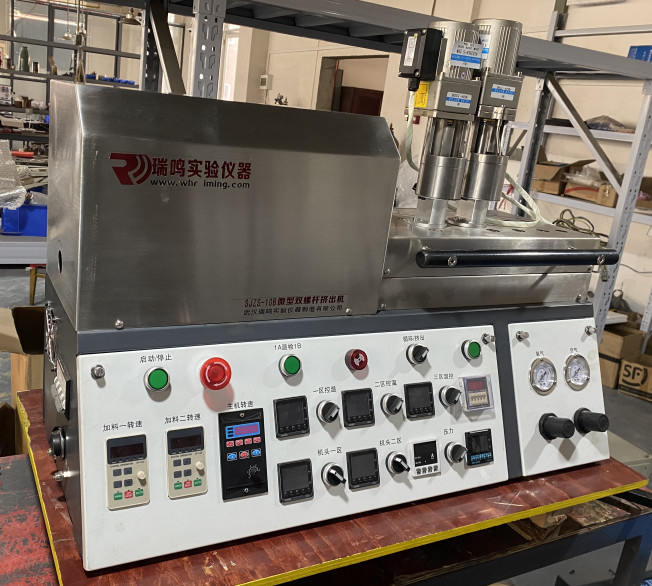

15-18g Twin Screw Laboratory Micro Extruder High Temperature Polymer Material

15-18g Twin Screw Laboratory Micro Extruder High Temperature Polymer Material

15-18g Twin Screw Laboratory Micro Extruder High Temperature Polymer Material
15-18g Twin Screw Laboratory Micro Extruder High Temperature Polymer Material
15-18g Twin Screw Laboratory Micro Extruder High Temperature Polymer Material
Product Details:
Place of Origin: China
Brand Name: RUIMING
Certification: patent
Model Number: SJZS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton box and wooden box
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Screw Diameter (mm): 20/40 Screw Thread Length (mm): 390
Cyclic Extrusion Dosage (g/time): 15-18 Heating Temperature (max ℃): 450
Main Motor Power( Kw): 1.5 Nitrogen Protection: Have
High Light:

Twin Screw Laboratory Micro Extruder

,

Polymer Material Laboratory Micro Extruder

15-18g Extrusion Twin Screw Laboratory Micro Extruder Special High Temperature Polymer Material



Characteristics of the Twin Screw Laboratory Micro Extruder Special High Temperature Polymer Material



1. low consumption,

2. high quality screw and barrel (38CrMoAlA, nitriding), long service time.

3. with PLC control, full automatic, easy operation.

4. wide use, with different molds, different use.

5.specially design, with wheel, convenient to move.



Key technical parameters of Twin Screw Laboratory Micro Extruder



Key technical parameters SJZS-7A SJZS-10A SJZS-10B GJZS-10 series
Screw diameter (small/big head)(mm) 7/25 10/30 10/30 10/33
Length of screw thread mm 190 250 250 340
The screw rotation speed rpm 70 51 51 51
Barrel form Can open Can open Can open Can not open
Main motor power(kw) 0.55 0.75 0.75 0.75
Cyclic extrusion dosage (g/time) 5-10(automatic control) 15-18(automatic control) 15-18(automatic control) no
Direct extrusion dosage (max kg/h) 0.45 1.5 1.5 1.5
Heating temperature (max ℃) 450 450 450 450
Feed I power 25 25 25 25
Feeder quantity 1 1 2(customization) customizable
Power of vacuum exhaust and dehumidifier (W) no no 180(optional) 180(optional)
Nitrogen protection Have Have Have Have
Overall dimensions (mm) 800x350x580 860x350x580 860x380x580 820x350x580



Our company is a professional manufacturer of polymer experimental equipment, specializing in the production of experimental plastic extruder, plastic injection molding machine, twin screw extrusion melt spinning machine, micro extrusion tube, micro profile, micro grain cutter and experimental double station automatic bottle blowing machine, micro sheet, micro film, micro melt-blown and other products. The company is also the first one successfully research and developed laboratory mini twin screw extruder and laboratory mini injection molding machine series products with leading level at home and abroad. The main performance indexes of the micro-extruder and micro-injection molding machine series have reached and surpassed the similar foreign products in many aspects, and they have high cost performance. They are ideal imported substitute products, especially suitable for the laboratory research of universities and enterprise R&D departments. At present, in addition to the domestic universities, scientific research units, company R&D department, our equipment also exported to the United States, Canada, Russia, Saudi Arabia, Azerbaijan and other countries.
