professional manufacturer for laboratory equipment
 |
| Place of Origin: | China |
| Brand Name: | RUIMING |
| Certification: | patent |
| Model Number: | SJZS |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton box and wooden box |
| Delivery Time: | 20-90 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 200 sets per month |
| Screw Diameter (mm): | 10/30 | Screw Thread Length (mm): | 250 |
|---|---|---|---|
| The Screw Rotation Speed (rpm): | 51 | Barrel Form: | Can Open |
| Main Motor Power( Kw): | 0.75 | Circulating Extrusion Dosage (g/per Time): | 15-18(auto Control) |
| High Light: | 0.75KW Lab Twin Screw Extruder,PLC Lab Twin Screw Extruder,250mm Laboratory Twin Screw Extruder |
||

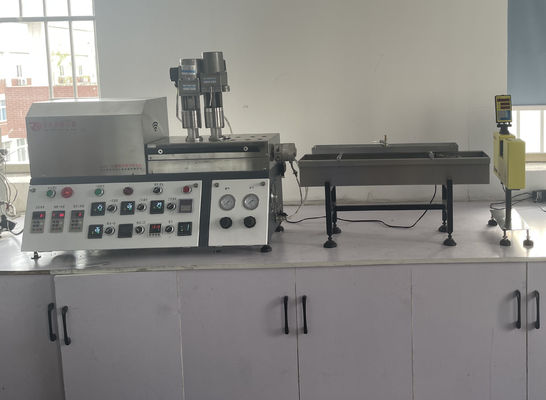

Application of Laboratory Twin Screw Extruder /PLC Control
This machine is suitable for engineering plastics, modified plastics, waste plastics, color masterbatch mixing plasticizing and extrusion processing experiments, with plasticizing homogenization, coloring proofing, filling modification and other functions.
Key Technical Parameters of Laboratory Twin Screw Extruder /PLC Control
| Key Technical Parameters | SJZS-7A | SJZS-10A | SJZS-10B | SJZS-10Z |
| Screw diameter (mm) | 7/25 | 10/30 | 10/30 | 10/30 |
| Screw thread length (mm) | 190 | 190 | 250 | 190 |
| The screw rotation speed (rpm) | 70 | 51 | 51 | 51 |
| Barrel form | Can open | Can open | Can open | Can open |
| Main motor power( kw) | 0.55 | 0.75 | 0.75 | 0.75 |
| Circulating extrusion dosage (g/per time) | 5-10(manual control) | 15-18(auto control) | 15-18(auto control) | without |
| Direct extrusion dosage (max kg/h) | 0.45 | 1.5 | 1.5 | 1.5 |
| Heating temperature (max ℃) | 450 | 450 | 450 | 450 |
| Feed 1 power (W) | without | 25(optional) | 25 | 25 |
| Feed 2 power ( W) | without | without | 25 | without |
| Power of vacuum exhaust and dehumidification device (W) | without | without | 180(optional) | without |
| Nitrogen protection | have | have | have | have |
| size (mm) | 800X350X580 | 800X350X580 | 850X350X580 | 800X350X580 |
| Key Technical Parameters | SJZS-20 | SJZS-20A |
| Screw diameter (mm) | 20/40 | 20/53 |
| Screw thread length (mm) | 390 | 480 |
| The screw rotation speed (rpm) | 0-50 | 51 |
| Barrel form | Do not open | Do not open |
| Main motor power( kw) | 1.5 | 2.2 |
| Circulating extrusion dosage (g/per time) | without | without |
| Direct extrusion dosage (max kg/h) | 6 | 6 |
| Heating power (kw) | 4.5 | 5 |
| Feed 1 power (W) | 25(optional) | 25 |
| Feed 2 power (W) | without | 25 |
| Power of vacuum exhaust and dehumidification device (W) | 250(optional) | 250(optional) |
| Nitrogen protection | have | have |
| Size (mm) | 1020x450x600 | 1120x450x600 |
