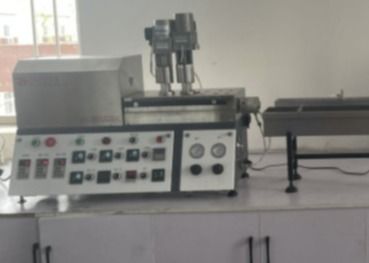

15g-18g Extrusion Dosage Mini Twin Screw Extruder For Polyphenylene Sulfide

15g-18g Extrusion Dosage Mini Twin Screw Extruder For Polyphenylene Sulfide

  • 15g-18g Extrusion Dosage Mini Twin Screw Extruder For Polyphenylene Sulfide
15g-18g Extrusion Dosage Mini Twin Screw Extruder For Polyphenylene Sulfide
Product Details:
Place of Origin: China
Brand Name: RUIMING
Certification: patent
Model Number: SJZS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton box and wooden box
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Main Material: Stainless Steel Feeding: Two Feeding Port
Screw: Twin Screw Direct Extrusion Dosage (max Kg/h): 1.5
Heating Temperature (max  ℃): 450 Nitrogen Protection: Have
High Light:

15g Lab Twin Screw Extruder

,

Polyphenylene Sulfide Twin Screw Extruder

,

18g dual screw extruder



Advantages of RUIMING Lab Mini Twin Screw Extruder



1. Nitrogen protection device is provided in the barrel cavity. with optional vacuum exhaust function.

2. It is suitable for almost all thermoplastic polymer materials, such as polyimide, PEEK, polyphenylene sulfide, PLA, PA, polycarbonate, etc., or adding magnetic powder, ceramic powder, graphene, polytetrafluoroethylene powder, metal powder, short glass fiber (powder level can reach nano level).

3. Small occupation area, can be used on the experimental bench or fume hood. The experiment time is short, in ten minutes can finish from melting, polymerization, extrusion to injection spline the whole process. Save researchers a lot of valuable time.

4. Can replace different heads, combined with the production of different auxiliary machine can do monofilaments spinning, 3D printing consumables sheet, extrusion, cutting, unidirectional stretching drawing, blowing bottles, all kinds of substrate coating, profile, etc.

5. Low raw material consumption and low energy consumption, suitable for experimental research of various thermoplastic polymer materials.

6. Easy to operate, good plasticizing performance, super uniform dispersion, circulation or continuous extrusion, a maximum circulation extrusion dosage of 15-18g.

7. The barrel can be opened, and the screw is removable for easy cleaning.

8. Household electricity 220V, fast heating speed. The barrel cavity is provided with nitrogen protection device. Optional frequency conversion control feeding device.

9. There are 5 temperature control areas, instrument temperature control, temperature control range of 0-450°.



Technical Parameters of Lab Micro Twin Screw Extruder



Key Technical Parameters SJZS-7A SJZS-10A SJZS-10B SJZS-10Z
Screw diameter (mm) 7/25 10/30 10/30 10/30
Screw thread length (mm) 190 190 250 190
The screw rotation speed (rpm) 70 51 51 51
Barrel form Can open Can open Can open Can open
Main motor power( kw) 0.55 0.75 0.75 0.75
Circulating extrusion dosage (g/per time) 5-10(manual control) 15-18(auto control) 15-18(auto control) without
Direct extrusion dosage (max kg/h) 0.45 1.5 1.5 1.5
Heating temperature (max ℃) 450 450 450 450
Feed 1 power (W) without 25(optional) 25 25
Feed 2 power ( W) without without 25 without
Power of vacuum exhaust and dehumidification device (W) without without 180(optional) without
Nitrogen protection have have have have
size (mm) 800X350X580 800X350X580 850X350X580 800X350X580
