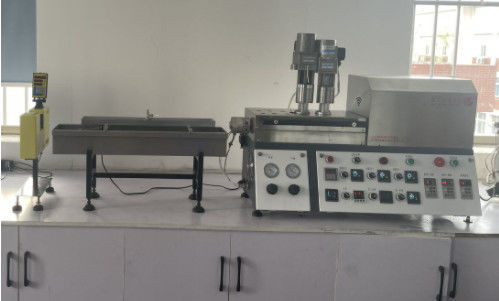

70rpm 0.55KW Lab Twin Screw Extruder For Single Fibre

Name: 70rpm 0.55KW Lab Twin Screw Extruder For Single Fibre
Brand: Wuhan Ruiming Experimental Instrument
SKU: SJZS
Availability: InStock

Brand Name:	RUIMING
Model Number:	SJZS
MOQ:	1pcs
Price:	Negotiable
Delivery Time:	20-90 days after order confirmed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

patent

Main Material:

Stainless Steel

Feeding:

Two Feeding Port

Barrel Form:

Can Open

Nitrogen Protection:

Have

Power Of Vacuum Exhaust And Dehumidification Device (W):

Without

Size (mm):

800X350X580

Packaging Details:

carton box and wooden box

Supply Ability:

200 sets per month

Highlight:

0.55KW Lab Twin Screw Extruder

70rpm Lab Twin Screw Extruder

Single Fibre screw type extruder

Product Description

Lab Micro Twin Screw Extruder Minimal Material Waste And Minimal Free Volume

Advantages of Lab Micro Twin Screw Extruder

This equipment has been specially designed for diverse and precise mini extruding processes.

With the capabilities to achieve the maximum chemistry characteristics with minimum batch quantities.

Special attention has been made to ensure precise smooth output motion of the extrusions, which is particularly important when performing low volume output rates for single fibre/strand extrusions etc.

Main Material:	Stainless Steel	Feeding:	Two Feeding Port
Barrel Form:	Can Open	Nitrogen Protection:	Have
Power Of Vacuum Exhaust And Dehumidification Device (W):	Without	Size (mm):	800X350X580

Technical Parameters of Lab Micro Twin Screw Extruder

Key Technical Parameters	SJZS-7A	SJZS-10A	SJZS-10B	SJZS-10Z
Screw diameter (mm)	7/25	10/30	10/30	10/30
Screw thread length (mm)	190	190	250	190
The screw rotation speed (rpm)	70	51	51	51
Barrel form	Can open	Can open	Can open	Can open
Main motor power( kw)	0.55	0.75	0.75	0.75
Circulating extrusion dosage (g/per time)	5-10(manual control)	15-18(auto control)	15-18(auto control)	without
Direct extrusion dosage (max kg/h)	0.45	1.5	1.5	1.5
Heating temperature (max ℃)	450	450	450	450
Feed 1 power (W)	without	25(optional)	25	25
Feed 2 power ( W)	without	without	25	without
Power of vacuum exhaust and dehumidification device (W)	without	without	180(optional)	without
Nitrogen protection	have	have	have	have
size (mm)	800X350X580	800X350X580	850X350X580	800X350X580

Key Technical Parameters	SJZS-20	SJZS-20A
Screw diameter (mm)	20/40	20/53
Screw thread length (mm)	390	480
The screw rotation speed (rpm)	0-50	51
Barrel form	Do not open	Do not open
Main motor power( kw)	1.5	2.2
Circulating extrusion dosage (g/per time)	without	without
Direct extrusion dosage (max kg/h)	6	6
Heating power (kw)	4.5	5
Feed 1 power (W)	25(optional)	25
Feed 2 power (W)	without	25
Power of vacuum exhaust and dehumidification device (W)	250(optional)	250(optional)
Nitrogen protection	have	have
Size (mm)	1020x450x600	1120x450x600
