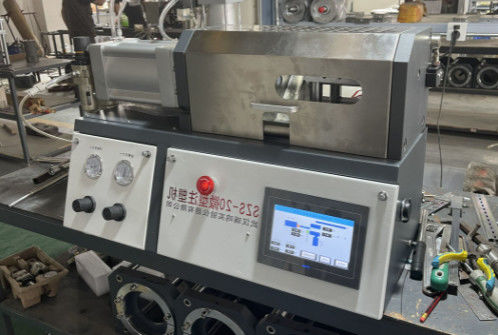

OEM 220V Lab Micro Twin Screw Extruder Two Feeding Port

OEM 220V Lab Micro Twin Screw Extruder Two Feeding Port

  • OEM 220V Lab Micro Twin Screw Extruder Two Feeding Port
OEM 220V Lab Micro Twin Screw Extruder Two Feeding Port
Product Details:
Place of Origin: China
Brand Name: RUIMING
Certification: patent
Model Number: SJZS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton box and wooden box
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Main Material: Stainless Steel Feeding: Two Feeding Port
Barrel Form: Can Open Nitrogen Protection: Have
Power Of Vacuum Exhaust And Dehumidification Device (W): Without Size (mm): 800X350X580
High Light:

220V Lab Micro Twin Screw Extruder

,

OEM Lab Micro Twin Screw Extruder

,

dia25mm micro extrusion machine

Lab Micro Twin Screw Extruder Minimal Material Waste And Minimal Free Volume



Features of Lab Micro Twin Screw Extruder



1. The barrel can be opened, and the screw is removable for easy cleaning.

2. Household electricity 220V, fast heating speed. The barrel cavity is provided with nitrogen protection device. Optional frequency conversion control feeding device.
3. Low raw material consumption and low energy consumption, suitable for experimental research of various thermoplastic polymer materials.

4. Easy to operate, good plasticizing performance, super uniform dispersion, circulation or continuous extrusion, a maximum circulation extrusion dosage of 15-18g.



Main Material: Stainless Steel Feeding: Two Feeding Port
Barrel Form: Can Open Nitrogen Protection: Have
Power Of Vacuum Exhaust And Dehumidification Device (W): Without Size (mm): 800X350X580



Technical Parameters of Lab Micro Twin Screw Extruder



Key Technical Parameters SJZS-7A SJZS-10A SJZS-10B SJZS-10Z
Screw diameter (mm) 7/25 10/30 10/30 10/30
Screw thread length (mm) 190 190 250 190
The screw rotation speed (rpm) 70 51 51 51
Barrel form Can open Can open Can open Can open
Main motor power( kw) 0.55 0.75 0.75 0.75
Circulating extrusion dosage (g/per time) 5-10(manual control) 15-18(auto control) 15-18(auto control) without
Direct extrusion dosage (max kg/h) 0.45 1.5 1.5 1.5
Heating temperature (max ℃) 450 450 450 450
Feed 1 power (W) without 25(optional) 25 25
Feed 2 power ( W) without without 25 without
Power of vacuum exhaust and dehumidification device (W) without without 180(optional) without
Nitrogen protection have have have have
size (mm) 800X350X580 800X350X580 850X350X580 800X350X580




Key Technical Parameters SJZS-20 SJZS-20A
Screw diameter (mm) 20/40 20/53
Screw thread length (mm) 390 480
The screw rotation speed (rpm) 0-50 51
Barrel form Do not open Do not open
Main motor power( kw) 1.5 2.2
Circulating extrusion dosage (g/per time) without without
Direct extrusion dosage (max kg/h) 6 6
Heating power (kw) 4.5 5
Feed 1 power (W) 25(optional) 25
Feed 2 power (W) without 25
Power of vacuum exhaust and dehumidification device (W) 250(optional) 250(optional)
Nitrogen protection have have
Size (mm) 1020x450x600 1120x450x600



Advantages of Lab Micro Twin Screw Extruder



This equipment has been specially designed for diverse and precise mini extruding processes.

With the capabilities to achieve the maximum chemistry characteristics with minimum batch quantities.

Special attention has been made to ensure precise smooth output motion of the extrusions, which is particularly important when performing low volume output rates for single fibre/strand extrusions etc.
