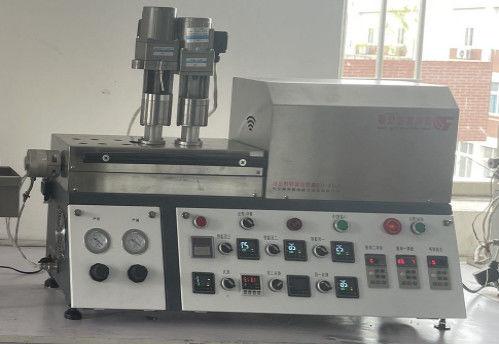

800X350X580mm Parallel Twin Screw Extruder Plastic Polymer Compounding Extruder

Name: 800X350X580mm Parallel Twin Screw Extruder Plastic Polymer Compounding Extruder
Brand: Wuhan Ruiming Experimental Instrument
SKU: SJZS
Availability: InStock

Brand Name:	RUIMING
Model Number:	SJZS
MOQ:	1pcs
Price:	Negotiable
Delivery Time:	20-90 days after order confirmed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

patent

Screw:

Two Screw

Screw Diameter (mm):

10/30

Screw Thread Length (mm):

190/250

The Screw Rotation Speed (rpm):

Main Motor Power( Kw):

1.5

Size (mm):

800X350X580

Packaging Details:

carton box and wooden box

Supply Ability:

200 sets per month

Highlight:

580mm Parallel Twin Screw Extruder

350mm Parallel Twin Screw Extruder

800mm Plastic Polymer Compounding Extruder

Product Description

Lab Plastic Polymer Compounding Parallel Co-Rotating Twin Screw Extruder

Brief Introduction of SJZS Series Lab Plastic Polymer Extruder

SJZS series conical twin-screw extruder have temperature-controller, vacuum exhaust device, suitable for the production of pipes, sheets and profiles. It has forced extrusion, high-quality, wide adaptability, long life, small shearing speed, material not easy broken down, good mixing performance, powder direct molding and so on.

Screw:	Two Screw	Screw Diameter (mm):	10/30
Screw Thread Length (mm):	190/250	The Screw Rotation Speed (rpm):	51
Main Motor Power( Kw):	1.5	Size (mm):	800X350X580

Parameters of SJZS Series Lab Plastic Polymer Extruder

Key Technical Parameters	SJZS-7A	SJZS-10A	SJZS-10B	SJZS-10Z
Screw diameter (mm)	7/25	10/30	10/30	10/30
Screw thread length (mm)	190	190	250	190
The screw rotation speed (rpm)	70	51	51	51
Barrel form	Can open	Can open	Can open	Can open
Main motor power( kw)	0.55	0.75	0.75	0.75
Circulating extrusion dosage (g/per time)	5-10(manual control)	15-18(auto control)	15-18(auto control)	without
Direct extrusion dosage (max kg/h)	0.45	1.5	1.5	1.5
Heating temperature (max ℃)	450	450	450	450
Feed 1 power (W)	without	25(optional)	25	25
Feed 2 power ( W)	without	without	25	without
Power of vacuum exhaust and dehumidification device (W)	without	without	180(optional)	without
Nitrogen protection	have	have	have	have
size (mm)	800X350X580	800X350X580	850X350X580	800X350X580

Key Technical Parameters	SJZS-20	SJZS-20A
Screw diameter (mm)	20/40	20/53
Screw thread length (mm)	390	480
The screw rotation speed (rpm)	0-50	51
Barrel form	Do not open	Do not open
Main motor power( kw)	1.5	2.2
Circulating extrusion dosage (g/per time)	without	without
Direct extrusion dosage (max kg/h)	6	6
Heating power (kw)	4.5	5
Feed 1 power (W)	25(optional)	25
Feed 2 power (W)	without	25
Power of vacuum exhaust and dehumidification device (W)	250(optional)	250(optional)
Nitrogen protection	have	have
Size (mm)	1020x450x600	1120x450x600
