20g 200V Mini Desktop Injection Molding Machine No Noise

Brand Name:	RUIMING
Model Number:	SZS
MOQ:	1pcs
Price:	Negotiable
Delivery Time:	20-90 days after order confirmed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

patent

Injection Pressure (MAX Mpa):

45/120/160

Mould Clamping Force (MAX T):

12/40/80

Injection Capacity (MAX G):

15/20/30

Temperature Control Area:

Temperature Control Power Of Injection Tube (W):

180/250/280

Voltage (V):

200-240

Packaging Details:

carton box and wooden box

Supply Ability:

200 sets per month

Highlight:

200V micro plastic injection molding machine

20g mini desktop plastic injection molding machine

200V Mini Desktop Injection Molding Machine

Product Description

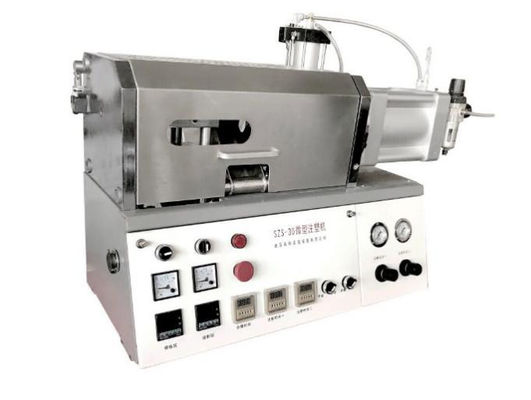

Lab Mini Micro Injection Molding Machine

Micro injection molding machine, also known as small injection molding machine, desktop injection molding machine, can be thermoplastic or thermosetting plastics into various shapes of plastic products. The machine has the advantages of small volume, strong mobility, suitable for classroom teaching and small sample production. Products include mold opening and closing parts, injection parts, fuselage, heating systems, control systems and feeding devices. Micro injection molding machine with charactoristics of simple structure, convenient operation, no noise, no pollution; Use 220V voltage, can be used in any place with electricity, not limited by industrial electricity. It is widely used and can be customized according to the specific needs of customers.

Key Technical Parameters of Lab Mini Micro Injection Molding Machine

Key technical parameters	SZS-15	SZS-20	SZS-30
Injection pressure (MAX Mpa)	45	120	160
Mould clamping force (MAX T)	12	40	80
Injection capacity (MAX g)	15	20	30
Temperature control area	2	2	2
Temperature control power of injection tube (W)	180	250	280
Template temperature control power (W)	400	800	1000
Voltage (V)	200-240	200-240	200-240
Rated current ( A)	3.5	5.0	7.0
Heating temperature (MAX ℃)	320	450	450
Size ( mm)	700x320x450	800x320x450	800x360x450
Weight ( kg)	90	120	135
