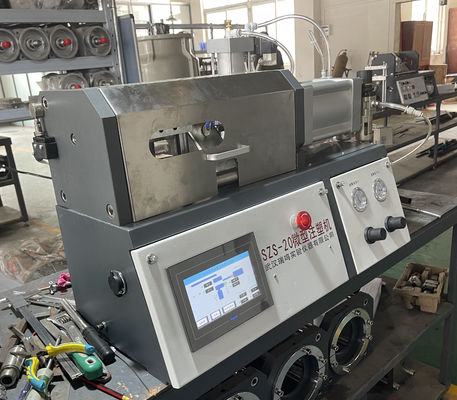

Multiple Splines Micro Injection Molding Machines For Polyimide

Multiple Splines Micro Injection Molding Machines For Polyimide

  • Multiple Splines Micro Injection Molding Machines For Polyimide
Multiple Splines Micro Injection Molding Machines For Polyimide
Product Details:
Place of Origin: China
Brand Name: RUIMING
Certification: patent
Model Number: SZS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton box and wooden box
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Injection Pressure (MAX Mpa): 45/120/160 Mould Clamping Force (MAX T): 12/40/80
Injection Capacity (MAX G): 15/20/30 Temperature Control Area: 2
Temperature Control Power Of Injection Tube (W): 180/250/280 Template Temperature Control Power (W): 400/800/1000
High Light:

Polyimide Micro Injection Molding Machines

,

Multiple Splines Micro Molding Machines

,

45Mpa Small Plastic Molding Machine

Micro Injection Molding Machines



A small machine like this, which can be placed on a table, is called a micro-injection molding machine. A microcomputer is a machine that produces micro-plastic products, including mould-opening and closing parts, injection parts, body, heating system, control system and feeding device. Generally used for micro precision parts production, long-term or small batch orders, color plate production, laboratory test/sampling, test mold production, dust-free workshop production, teaching and training purposes.

It is characterized by low cost, high speed, high efficiency, high precision and easy mass production. In recent years, with the development of injection parts towards high, fine and sharp direction, the demand for micro injection molding machine in the field of injection molding is increasing.

Wuhan Ruiming Experimental Instrument Manufacturing Co., Ltd. is a professional manufacturer of polymer material experimental equipment. Ruiming micro-injection molding machine has the following characteristics:



Advantages of Injection Molding Machine



1. The injection molding machine is plunger type structure. The maximum injection volume at one time is 30g. High utilization rate, less waste and low energy consumption.

2. Injection of various national standard and US standard spline molds, 30g model can process 100*100*(1-3)mm sheet spline and 165mm stretch spline. (also can customize according to requirements)

3. With extruder can produce almost all thermoplastic polymer material spline, such as: polyimide, PEEK, polyphenylene sulfide PLA, PA, polycarbonate, etc., or add magnetic powder, ceramic powder, graphene, ptfe powder, metal powder, short glass fiber powder, level can reach nano level. It also can be used seperately.

4. Mold replacement and installation is convenient and reliable. Automatic mold opening, automatic mold closing, the best way to sample most materials is automatic demoulding.

5. The optional control system is PLC touch screen, which can store multiple formula and processing parameters.

6. Can increase the core pulling device, do small tubular products. Small size, light weight, can be used on the experimental bench or fume hood.

7. Easy to use, automatic injection molding machine, loading raw material one time can be continuous injection of multiple splines. Adopt automatic operating system, easy to operate, strong clamping force.

8. Temperature control zone: 2 zones, instrument temperature control, maximum operating temperature 450℃. The injection cylinder can be formulated φ 12-18mm according to experimental raw materials

9.9. It can be used together with the miniature extruder. The material can directly enter the injection sleeve of the injection molding machine, and directly facilitate the injection molding of splines and various injection products. (It is convenient to use and can avoid secondary processing)
