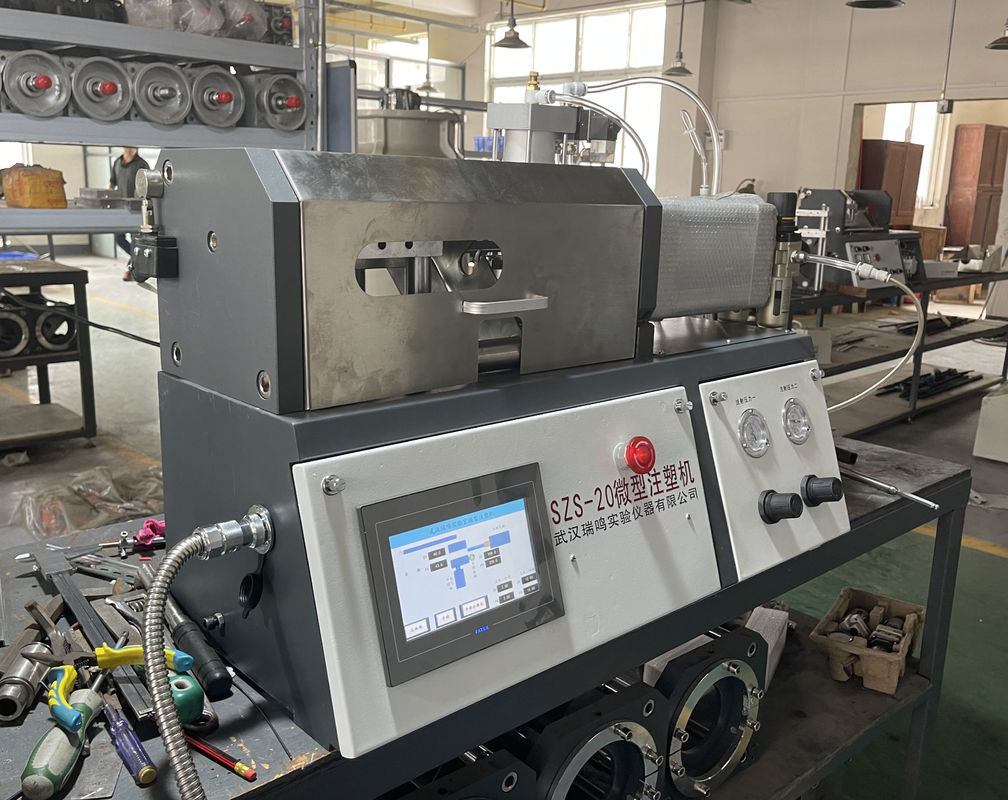

RUIMING 15g 12T Micro Injection Molding Machines

RUIMING 15g 12T Micro Injection Molding Machines

  • RUIMING 15g 12T Micro Injection Molding Machines
RUIMING 15g 12T Micro Injection Molding Machines
Product Details:
Place of Origin: China
Brand Name: RUIMING
Certification: patent
Model Number: SZS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton box and wooden box
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Injection Pressure (MAX Mpa): 45/120/160 Mould Clamping Force (MAX T): 12/40/80
Injection Capacity (MAX G): 15/20/30 Temperature Control Area: 2
Temperature Control Power Of Injection Tube (W): 180/250/280 Template Temperature Control Power (W): 400/800/1000
High Light:

12T Micro Injection Molding Machines

,

15g Micro Injection Molding Machines

,

RUIMING micro molding machine

Micro injection molding machine For Multiple Polymers Splines



Characteristics of Micro injection molding machine



It has the following characteristics:

Ο Can produce a variety of national, the United States standard sample.

Ο Easy to use, high automatic procedure, automatic mold closing, automatic mold opening, loading the material one time,Multiple splines can be injected continuously.

Ο Special interface design between mold and equipment makes mold replacement and installation convenient and reliable.

Ο Small volume, light capacity. It can work placed on the test bed or fume cupboard. It can be used with the miniature double screw extruder produced by our company, the extruder extrudes the material directly into the injection cylinder, so as to directly facilitate the injection into the required products and avoid the damage of secondary processing to the material



Key Technical Parameters Micro Injection Molding Machines



Key technical parameters SZS-15 SZS-20 SZS-30
Injection pressure (MAX Mpa) 45 120 160
Mould clamping force (MAX T) 12 40 80
Injection capacity (MAX g) 15 20 30
Temperature control area 2 2 2
Temperature control power of injection tube (W) 180 250 280
Template temperature control power (W) 400 800 1000
Voltage (V) 200-240 200-240 200-240
Rated current ( A) 3.5 5.0 7.0
Heating temperature (MAX ℃) 320 450 450
Size ( mm) 700x320x450 800x320x450 800x360x450
Weight ( kg) 90 120 135
