160Mpa 30g Injection Capacity Micro Injection Molding Machines Auto Temperature Control

Brand Name:	RUIMING
Model Number:	SZS
MOQ:	1pcs
Price:	Negotiable
Delivery Time:	20-90 days after order confirmed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

patent

Injection Pressure (MAX Mpa):

45/120/160

Mould Clamping Force (MAX T):

12/40/80

Injection Capacity (MAX G):

15/20/30

Temperature Control Area:

Temperature Control Power Of Injection Tube (W):

180/250/280

Template Temperature Control Power (W):

400/800/1000

Packaging Details:

carton box and wooden box

Supply Ability:

200 sets per month

Highlight:

30g Micro Injection Molding Machines

Auto Micro Injection Molding Machines

160Mpa mini plastic injection machine

Product Description

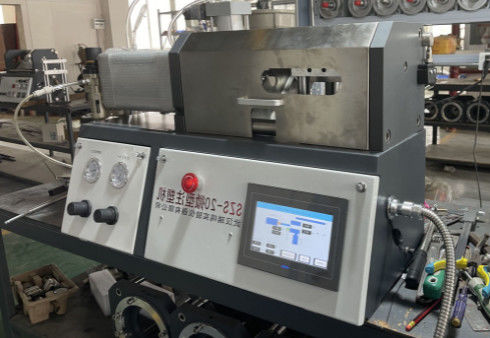

Micro Injection Molding Machines Auto Temperature Control

Parameters of Micro Injection Molding Machines

Key technical parameters	SZS-15	SZS-20	SZS-30
Injection pressure (MAX Mpa)	45	120	160
Mould clamping force (MAX T)	12	40	80
Injection capacity (MAX g)	15	20	30
Temperature control area	2	2	2
Temperature control power of injection tube (W)	180	250	280
Template temperature control power (W)	400	800	1000
Voltage (V)	200-240	200-240	200-240
Rated current ( A)	3.5	5.0	7.0
Heating temperature (MAX ℃)	320	450	450
Size ( mm)	700x320x450	800x320x450	800x360x450
Weight ( kg)	90	120	135

Introduction of Micro Injection Molding Machines

Quite similar with the extrusion, if you are trying to find a solution for the production of Tensile, Flexural and Impact Specimens, small volume or small piece injection molding production, Ruiming has mini lab injection molding machines which are affordable and the less plastic pellets needed
