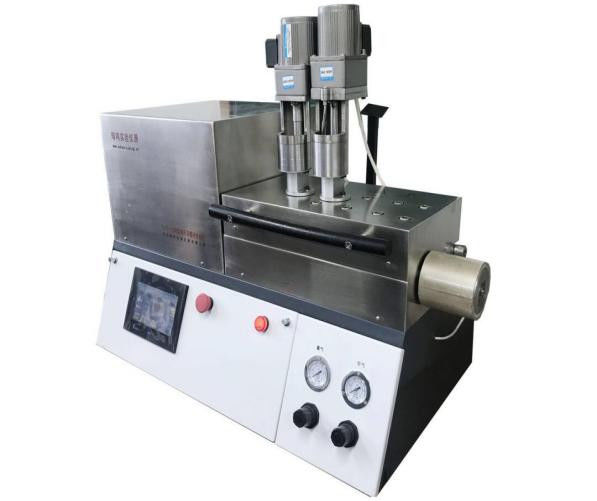

RUIMING 1.5kg/H PEEK Mini Twin Screw Extruder

RUIMING 1.5kg/H PEEK Mini Twin Screw Extruder

  • RUIMING 1.5kg/H PEEK Mini Twin Screw Extruder
RUIMING 1.5kg/H PEEK Mini Twin Screw Extruder
Product Details:
Place of Origin: China
Brand Name: RUIMING
Certification: patent
Model Number: SJZS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton box and wooden box
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Main Material: Stainless Steel Feeding: Two Feeding Port
Screw: Twin Screw Direct Extrusion Dosage (max Kg/h): 1.5
Heating Temperature (max  ℃): 450 Nitrogen Protection: Have
High Light:

RUIMING lab twin screw extruder


1.5kg/H mini twin screw extruder


PEEK two screw extruder


Advantages of RUIMING Lab Mini Twin Screw Extruder


Extruder MAIN MATERIAL: Stainless Steel Extruder FEEDING: Two Feeding Port


1. Low raw material consumption and low energy consumption, suitable for experimental research of various thermoplastic polymer materials.

2. Easy to operate, good plasticizing performance, super uniform dispersion, circulation or continuous extrusion, a maximum circulation extrusion dosage of 15-18g.

3. The barrel can be opened, and the screw is removable for easy cleaning.

4. Household electricity 220V, fast heating speed. The barrel cavity is provided with nitrogen protection device. Optional frequency conversion control feeding device.

5. There are 5 temperature control areas, instrument temperature control, temperature control range of 0-450°.

6. Nitrogen protection device is provided in the barrel cavity. with optional vacuum exhaust function.

7. It is suitable for almost all thermoplastic polymer materials, such as polyimide, PEEK, polyphenylene sulfide, PLA, PA, polycarbonate, etc., or adding magnetic powder, ceramic powder, graphene, polytetrafluoroethylene powder, metal powder, short glass fiber (powder level can reach nano level).

8. Small occupation area, can be used on the experimental bench or fume hood. The experiment time is short, in ten minutes can finish from melting, polymerization, extrusion to injection spline the whole process. Save researchers a lot of valuable time.

9. Can replace different heads, combined with the production of different auxiliary machine can do monofilaments spinning, 3D printing consumables sheet, extrusion, cutting, unidirectional stretching drawing, blowing bottles, all kinds of substrate coating, profile, etc.
