Micro Injection Molding Machines
Created with Pixso. 700x320x450mm Miniature Injection Molding Machine For Pharmaceutical Industry

700x320x450mm Miniature Injection Molding Machine For Pharmaceutical Industry

Brand Name: RUIMING
Model Number: SZS
MOQ: 1pcs
Price: Negotiable
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
patent
Injection Capacity (MAX G):
15/20/30
Temperature Control Area:
2
Temperature Control Power Of Injection Tube (W):
180/250/280
Template Temperature Control Power (W):
400/800/1000
Voltage (V):
200-240
Rated Current ( A):
3.5/5.0/7.0
Packaging Details:
carton box and wooden box
Supply Ability:
200 sets per month
Highlight:

450mm Miniature Injection Molding Machine

,

320mm Miniature Injection Molding Machine

,

700mm small plastic injection machine

Product Description

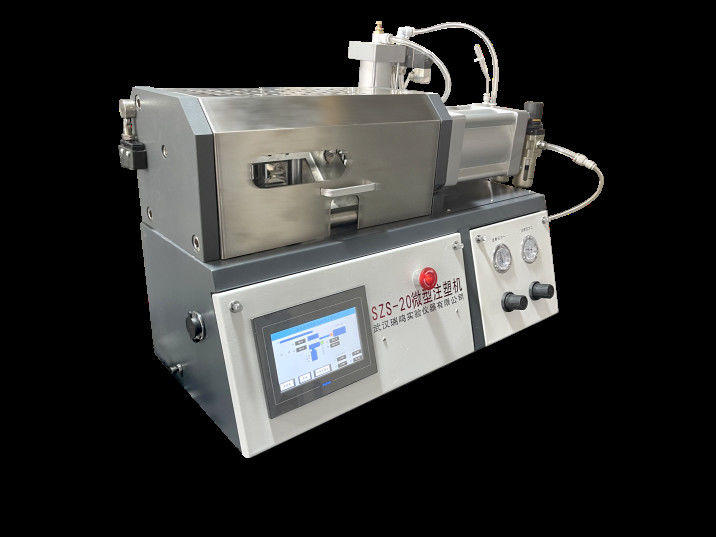

Wuhan Ruiming Experimental Equipment Series Advanced Laboratory Micro Injection Molding Machine



Wuhan Ruiming experimental equipment series of advanced laboratory micro-injection molding machine provides the smallest sample rapid prototyping means for material research laboratory, pharmaceutical industry, food processing industry, very suitable for formula research, especially in the formula of some materials are particularly expensive or difficult to obtain, Using this micro injection molding machine in conjunction with our small twin-screw mixing equipment can quickly produce reliable, highly repeatable final samples, greatly saving time and material costs.



Key Technical Parameters of Automatic Injection Molding Machine





Key technical parameters SZS-15 SZS-20 SZS-30
Injection pressure (MAX Mpa) 45 120 160
mould clamping force (MAX T) 12 40 80
injection capacity (MAX g) 15 20 30
Temperature control area 2 2 2
Temperature control power of injection tube (W) 180 250 280
Template temperature control power (W) 400 800 1000
Voltage (V) 200-240 200-240 200-240
Rated current ( A) 3.5 5.0 7.0
Heating temperature (MAX ℃) 320 450 450
Size ( mm) 700x320x450 800x320x450 800x360x450
Weight ( kg) 90 120 135
