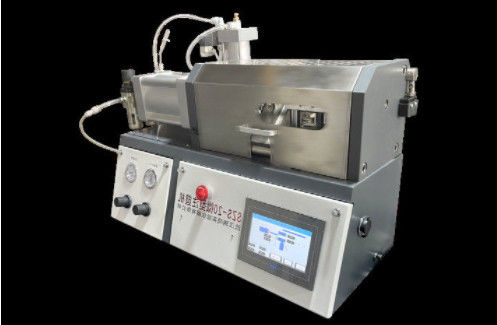

Ruiming SZS Micro Injection Molding Machines Pneumatic For Laboratory

Ruiming SZS Micro Injection Molding Machines Pneumatic For Laboratory

  • Ruiming SZS Micro Injection Molding Machines Pneumatic For Laboratory
Ruiming SZS Micro Injection Molding Machines Pneumatic For Laboratory
Product Details:
Place of Origin: China
Brand Name: RUIMING
Certification: patent
Model Number: SZS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton box and wooden box
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Injection Pressure (MAX Mpa): 45/120/160 Mould Clamping Force (MAX T): 12/40/80
Injection Capacity (MAX G): 15/20/30 Temperature Control Area: 2
Temperature Control Power Of Injection Tube (W): 180/250/280 Template Temperature Control Power (W): 400/800/1000
High Light:

SZS Micro Injection Molding Machines


Ruiming Micro Injection Molding Machines


Pneumatic Laboratory mini moulding machine

Ruiming SZS Laboratory Micro Injection Molding Machine

Sz-15 laboratory mini injection molding machine is a series of small injection machine for experiment developed recently by our company. Dumbbell spline products can be produced with a small amount of materials. The main performance index of the series of micro-injection machines used in the laboratory has reached the level of similar foreign products such as HAAKE MiniJet and DSM Xplore, but with high cost performance, it is an ideal substitute for imported products. Sz-15 micro injection molding machine main characteristics: small size, the main machine size is about 700×310×460(mm), can be directly placed on the experimental table; Material saving, low energy consumption, low experimental cost; Adopt pneumatic power source to keep the laboratory environment clean and hygienic; Injection pressure, strong clamping force; High degree of automation; The mould is made of stainless steel, and can be replaced with different moulds according to different splines to meet the requirements of various splines. It can be easily used with the laboratory mini twin screw extruder of our company to directly extrude the experimental material into the injection cylinder of the mini injection molding machine to produce spline products conveniently. Main technical parameters: Injection volume: Max 15g Weight :62 kg


Key Technical Parameters of Automatic Injection Molding Machine



Key technical parameters SZS-15 SZS-20 SZS-30
Injection pressure (MAX Mpa) 45 120 160
mould clamping force (MAX T) 12 40 80
injection capacity (MAX g) 15 20 30
Temperature control area 2 2 2
Temperature control power of injection tube (W) 180 250 280
Template temperature control power (W) 400 800 1000
Voltage (V) 200-240 200-240 200-240
Rated current ( A) 3.5 5.0 7.0
Heating temperature (MAX ℃) 320 450 450
Size ( mm) 700x320x450 800x320x450 800x360x450
Weight ( kg) 90 120 135
