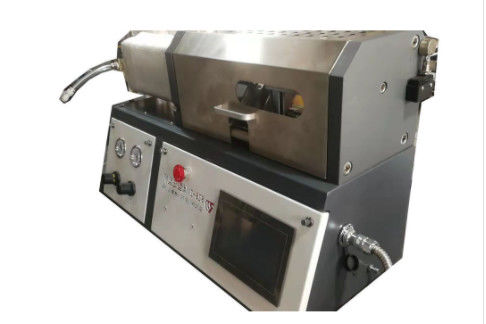

OEM ODM 12T Mini Injection Molding Machine

OEM ODM 12T Mini Injection Molding Machine

  • OEM ODM 12T Mini Injection Molding Machine
OEM ODM 12T Mini Injection Molding Machine
Product Details:
Place of Origin: China
Brand Name: RUIMING
Certification: patent
Model Number: SZS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton box and wooden box
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Injection Pressure (MAX Mpa): 45/120/160 Mould Clamping Force (MAX T): 12/40/80
Injection Capacity (MAX G): 15/20/30 Temperature Control Area: 2
Temperature Control Power Of Injection Tube (W): 180/250/280 Voltage (V): 200-240
High Light:

ODM Mini Injection Molding Machine

,

OEM mini injection molding machine

,

12T micro injection machine

Ruiming Micro Injection Molding Machine Application In The Pharmaceutical Food Processing Industries

Application:



Ruiming Micro injection molding machine combined with Laboratory miniature conical twin screw mixing extruders is applicated in Polymer thermal stability test, chemical rheological, additives/filler dispersion, such as nanoparticles, polymer rheology (ideal rheometer), polymer blends and polymer degradation, reactive blending (extrusion) of active composition of drug/polymer, small amount of blending, the preparation of test samples, lab mixing of small sample, evaluation of competing products.

Ruiming SJS micro injection molding machine provides rapid prototyping means of small samples for materials research laboratories, pharmaceutical and food processing industries, etc. It can make mixed samples into splines for performance testing, so it is very suitable for formula research, especially expensive materials in formula or samples that are difficult to obtain. Micro injection molding machine combined with micro twin screw mixed extruder can quickly get the reliable, high repeatability sample, not only the sample time cycle is greatly shortened, but also greatly save the cost of formula research.



Key Technical Parameters of Automatic Injection Molding Machine





Key technical parameters SZS-15 SZS-20 SZS-30
Injection pressure (MAX Mpa) 45 120 160
mould clamping force (MAX T) 12 40 80
injection capacity (MAX g) 15 20 30
Temperature control area 2 2 2
Temperature control power of injection tube (W) 180 250 280
Template temperature control power (W) 400 800 1000
Voltage (V) 200-240 200-240 200-240
Rated current ( A) 3.5 5.0 7.0
Heating temperature (MAX ℃) 320 450 450
Size ( mm) 700x320x450 800x320x450 800x360x450
Weight ( kg) 90 120 135
