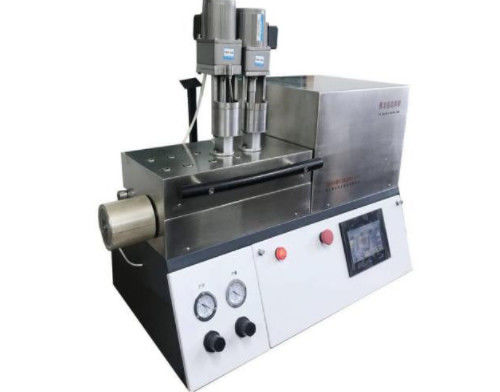

1020x450x600mm Lab Twin Screw Extruder PLC Control Communication System

1020x450x600mm Lab Twin Screw Extruder PLC Control Communication System

  • 1020x450x600mm Lab Twin Screw Extruder PLC Control Communication System
1020x450x600mm Lab Twin Screw Extruder PLC Control Communication System
Product Details:
Place of Origin: China
Brand Name: RUIMING
Certification: patent
Model Number: SJZS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton box and wooden box
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Product Name: Twin Screw Extruder With PLC Control Communication System Screw Diameter (mm): 10/30
Direct Extrusion Dosage (max Kg/h): 1.5kg/h Heating Temperature (max ℃): 450℃
The Screw Rotation Speed (rpm): 51rpm Size (mm): 800X350X580
Nitrogen Protection: Have OEM: YES
High Light:

600mm Lab Twin Screw Extruder

,

450mm Lab Twin Screw Extruder

,

PLC Control screw extruder machine

Twin Screw Extruder With PLC Control Communication System



Introduction of Twin Screw Extruder

Twin screw extruder has compact single shell structure design, cover a small area, it is the ideal choice for fume hood applications. Screw elements and cartridges are designed to scale geometrically through all extruders for easy process magnification.Twin screw extruder adopts PLC control communication system, equipped with integrated feeder control and easy to remove product contact parts.
1. Low raw material consumption and low energy consumption, suitable for experimental research of various thermoplastic polymer materials.

2. Easy to operate, good plasticizing performance, super uniform dispersion, circulation or continuous extrusion, a maximum circulation extrusion dosage of 15-18g.

3. The barrel can be opened, and the screw is removable for easy cleaning.

4. Household electricity 220V, fast heating speed. The barrel cavity is provided with nitrogen protection device. Optional frequency conversion control feeding device.



Parameters of Twin Screw Extruder

Key Technical Parameters SJZS-7A SJZS-10A SJZS-10B SJZS-10Z
Screw diameter (mm) 7/25 10/30 10/30 10/30
Screw thread length (mm) 190 190 250 190
The screw rotation speed (rpm) 70 51 51 51
Barrel form Can open Can open Can open Can open
Main motor power( kw) 0.55 0.75 0.75 0.75
Circulating extrusion dosage (g/per time) 5-10(manual control) 15-18(auto control) 15-18(auto control) without
Direct extrusion dosage (max kg/h) 0.45 1.5 1.5 1.5
Heating temperature (max ℃) 450 450 450 450
Feed 1 power (W) without 25(optional) 25 25
Feed 2 power ( W) without without 25 without
Power of vacuum exhaust and dehumidification device (W) without without 180(optional) without
Nitrogen protection have have have have
size (mm) 800X350X580 800X350X580 850X350X580 800X350X580




Key Technical Parameters SJZS-20 SJZS-20A
Screw diameter (mm) 20/40 20/53
Screw thread length (mm) 390 480
The screw rotation speed (rpm) 0-50 51
Barrel form Do not open Do not open
Main motor power( kw) 1.5 2.2
Circulating extrusion dosage (g/per time) without without
Direct extrusion dosage (max kg/h) 6 6
Heating power (kw) 4.5 5
Feed 1 power (W) 25(optional) 25
Feed 2 power (W) without 25
Power of vacuum exhaust and dehumidification device (W) 250(optional) 250(optional)
Nitrogen protection have have
Size (mm) 1020x450x600 1120x450x600
