Small Injection Molding Machines For Plastic Products Shapping

Brand Name:	RUIMING
Model Number:	SZS
MOQ:	1pcs
Price:	Negotiable
Delivery Time:	20-90 days after order confirmed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

patent

Injection Pressure (MAX Mpa):

45/120/160

Mould Clamping Force (MAX T):

12/40/80

Injection Capacity (MAX G):

15/20/30

Temperature Control Area:

Temperature Control Power Of Injection Tube (W):

180/250/280

Template Temperature Control Power (W):

400/800/1000

Packaging Details:

carton box and wooden box

Supply Ability:

200 sets per month

Highlight:

Small Injection Molding Machines 1000w

Plastic Products Shapping Injection Molding Machines

Product Description

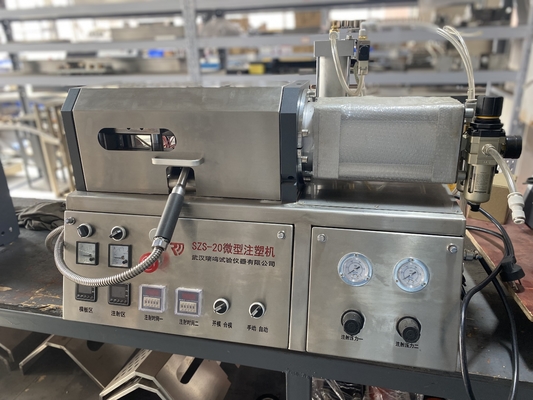

Small Injection Molding Machine

Small Injection Molding Machines For Plastic Products Shapping

Ruiming company engaged in the manufacture of polymer material Twin Screw Extruder and injection moulding machine in Wuhan China. In the past decade, Ruiming has served hundreds of company, institutes and universities.Excellent production quality control, perfect after-sales service etc.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Key Technical Parameters of Small Injection Molding Machine

Key technical parameters	SZS-15	SZS-20	SZS-30
Injection pressure (MAX Mpa)	45	120	160
mould clamping force (MAX T)	12	40	80
injection capacity (MAX g)	15	20	30
Temperature control area	2	2	2
Temperature control power of injection tube (W)	180	250	280
Template temperature control power (W)	400	800	1000
Voltage (V)	200-240	200-240	200-240
Rated current ( A)	3.5	5.0	7.0
Heating temperature (MAX ℃)	320	450	450
Size ( mm)	700x320x450	800x320x450	800x360x450
Weight ( kg)	90	120	135
