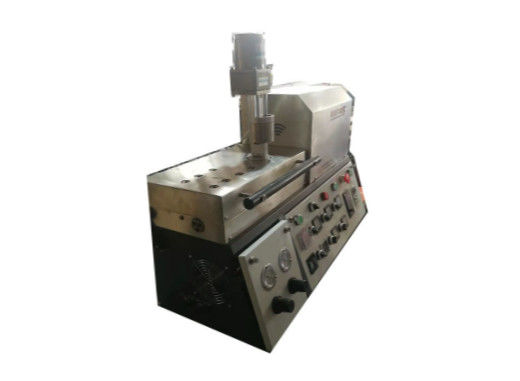

Stainless Steel Twin Screw Extruder Machine For Pipe Sheet Granules

Name: Stainless Steel Twin Screw Extruder Machine For Pipe Sheet Granules
Brand: Wuhan Ruiming Experimental Instrument
SKU: SJZS
Availability: InStock

Brand Name:	RUIMING
Model Number:	SJZS
MOQ:	1pcs
Price:	Negotiable
Delivery Time:	30-90DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

patent

Screw Type:

Twin Screw

Material:

Stainless Steel

Feeding:

Two Feeders

Main Motor Power( Kw):

2.2

Heating Power (kw):

4.5

Nitrogen Protection:

Have

Packaging Details:

carton box and wooden box

Supply Ability:

200 sets per month

Highlight:

Stainless Twin Screw Extruder Machine

4.5kw Twin Screw Extruder Machine

6kg/h screw extruder machine

Product Description

Twin Screw Extruder Machine Products With Plastic Pipe And Sheet Granules

Parameters of Twin Screw Extruder Machine

Key Technical Parameters	SJZS-7A	SJZS-10A	SJZS-10B	SJZS-10Z
Screw diameter (mm)	7/25	10/30	10/30	10/30
Screw thread length (mm)	190	190	250	190
The screw rotation speed (rpm)	70	51	51	51
Barrel form	Can open	Can open	Can open	Can open
Main motor power( kw)	0.55	0.75	0.75	0.75
Circulating extrusion dosage (g/per time)	5-10(manual control)	15-18(auto control)	15-18(auto control)	without
Direct extrusion dosage (max kg/h)	0.45	1.5	1.5	1.5
Heating temperature (max ℃)	450	450	450	450
Feed 1 power (W)	without	25(optional)	25	25
Feed 2 power ( W)	without	without	25	without
Power of vacuum exhaust and dehumidification device (W)	without	without	180(optional)	without
Nitrogen protection	have	have	have	have
size (mm)	800X350X580	800X350X580	850X350X580	800X350X580

Key Technical Parameters	SJZS-20	SJZS-20A
Screw diameter (mm)	20/40	20/53
Screw thread length (mm)	390	480
The screw rotation speed (rpm)	0-50	51
Barrel form	Do not open	Do not open
Main motor power( kw)	1.5	2.2
Circulating extrusion dosage (g/per time)	without	without
Direct extrusion dosage (max kg/h)	6	6
Heating power (kw)	4.5	5
Feed 1 power (W)	25(optional)	25
Feed 2 power (W)	without	25
Power of vacuum exhaust and dehumidification device (W)	250(optional)	250(optional)
Nitrogen protection	have	have
Size (mm)	1020x450x600	1120x450x600

Description of Twin Screw Extruder Machine

Twin screw extruder machine price can be discussed based on different materials, it is a kind of high efficiency equipment for plastic extrusion, it is mainly composed by force feeder, soft plasticization screw and barrel, high precision gearbox, exhaust system, it is features of even mixing, better plasticization,stableworking, high capacity, and it is suitable for produce PVC products from mixed powder, within different mold and other auxiliary equipments, it can produce plastic pipe, profile, board, sheet, granules and so on.
