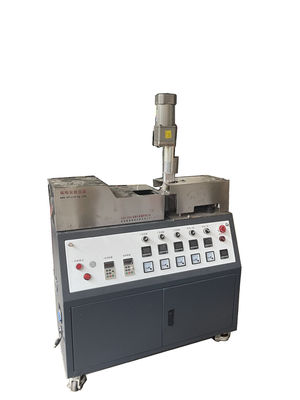

Custom 0.75KW 250mm Screw Thread Mini Lab Extruder

Custom 0.75KW 250mm Screw Thread Mini Lab Extruder

  • Custom 0.75KW 250mm Screw Thread Mini Lab Extruder
Custom 0.75KW 250mm Screw Thread Mini Lab Extruder
Product Details:
Place of Origin: China
Brand Name: RUIMING
Certification: patent
Model Number: SJZS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton box and wooden box
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Screw Diameter (mm): 10/30 Screw Thread Length (mm): 190/250
The Screw Rotation Speed (rpm): 51 Barrel Form: Can Open
Main Motor Power( Kw): 0.75 Circulating Extrusion Dosage (g/per Time): 15-18(auto Control)
High Light:

250mm Screw Thread Mini Lab Extruder

,

Custom 0.75KW Mini Lab Extruder

,

0.75KW twin extruder machine

5 Temperature Control Areas Mini Lab Extruder



Wuhan Ruiming Experimental Instrument Manufacturing Co., Ltd. successfully developed and issued laboratory mini-twin screw extruder and laboratory mini-injection molding machine series products which with advanced technology both in domestic and aboard. The series of mico extruder and micro injection machine have achieved and surpassed the technology level of similar foreign products such as HAAKE MiniLab, MiniJet and DSM Xplore in many aspects, but with high cost performance, they are ideal imported alternative products. Especially suitable for laboratory research of university and development department of enterprise, in addition to domestic universities, research units, company research and development department, our products also exported to the United States, Canada, Russia, Saudi Arabia, Azerbaijan and so on.



Screw Diameter (mm): 10/30 Screw Thread Length (mm): 190/250
The Screw Rotation Speed (rpm): 51 Barrel Form: Can Open
Main Motor Power( Kw): 0.75 Circulating Extrusion Dosage (g/per Time): 15-18(auto Control)



Parameters of Mini Lab Extruder



Key Technical Parameters SJZS-7A SJZS-10A SJZS-10B SJZS-10Z
Screw diameter (mm) 7/25 10/30 10/30 10/30
Screw thread length (mm) 190 190 250 190
The screw rotation speed (rpm) 70 51 51 51
Barrel form Can open Can open Can open Can open
Main motor power( kw) 0.55 0.75 0.75 0.75
Circulating extrusion dosage (g/per time) 5-10(manual control) 15-18(auto control) 15-18(auto control) without
Direct extrusion dosage (max kg/h) 0.45 1.5 1.5 1.5
Heating temperature (max ℃) 450 450 450 450
Feed 1 power (W) without 25(optional) 25 25
Feed 2 power ( W) without without 25 without
Power of vacuum exhaust and dehumidification device (W) without without 180(optional) without
Nitrogen protection have have have have
size (mm) 800X350X580 800X350X580 850X350X580 800X350X580




Key Technical Parameters SJZS-20 SJZS-20A
Screw diameter (mm) 20/40 20/53
Screw thread length (mm) 390 480
The screw rotation speed (rpm) 0-50 51
Barrel form Do not open Do not open
Main motor power( kw) 1.5 2.2
Circulating extrusion dosage (g/per time) without without
Direct extrusion dosage (max kg/h) 6 6
Heating power (kw) 4.5 5
Feed 1 power (W) 25(optional) 25
Feed 2 power (W) without 25
Power of vacuum exhaust and dehumidification device (W) 250(optional) 250(optional)
Nitrogen protection have have
Size (mm) 1020x450x600 1120x450x600
