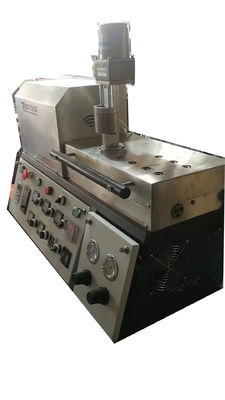

RUIMING 30mm Twin Screw Extruder Mini Lab Testing Machine

RUIMING 30mm Twin Screw Extruder Mini Lab Testing Machine

  • RUIMING 30mm Twin Screw Extruder Mini Lab Testing Machine
RUIMING 30mm Twin Screw Extruder Mini Lab Testing Machine
Product Details:
Place of Origin: China
Brand Name: RUIMING
Certification: patent
Model Number: SJZS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton box and wooden box
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Screw Diameter (mm): 10/30 Screw Thread Length (mm): 250
The Screw Rotation Speed (rpm): 51rpm Barrel Form: Can Open
Main Motor Power( Kw): 0.75 Circulating Extrusion Dosage (g/per Time): 15-18(auto Control)
High Light:

RUIMING Twin Screw Extruder

,

30mm Twin Screw Extruder

,

0.75KW Lab Scale Extruder

RUIMING Mini Lab Testing Machine Twin Screw Extruder



RUIMING Mini lab testing machine Twin Screw Extruder has excellent mixing performence, good self-cleaning performance and flexible modular configuration characteristics which make them suitable for processing different types of material. they are extensively used in the polymers processing, food staff processing and chemical produts, especially for various of high malecular materials.



RUIMING Mini lab testing machine Twin Screw Extruder has many different kinds of machine and supporting customized according to our customers' needs.



Screw Diameter (mm): 10/30 Screw Thread Length (mm): 250
The Screw Rotation Speed (rpm): 51rpm Barrel Form: Can Open
Main Motor Power( Kw): 0.75 Circulating Extrusion Dosage (g/per Time): 15-18(auto Control)



Parameters of Mini Lab Extruder



Key Technical Parameters SJZS-7A SJZS-10A SJZS-10B SJZS-10Z
Screw diameter (mm) 7/25 10/30 10/30 10/30
Screw thread length (mm) 190 190 250 190
The screw rotation speed (rpm) 70 51 51 51
Barrel form Can open Can open Can open Can open
Main motor power( kw) 0.55 0.75 0.75 0.75
Circulating extrusion dosage (g/per time) 5-10(manual control) 15-18(auto control) 15-18(auto control) without
Direct extrusion dosage (max kg/h) 0.45 1.5 1.5 1.5
Heating temperature (max ℃) 450 450 450 450
Feed 1 power (W) without 25(optional) 25 25
Feed 2 power ( W) without without 25 without
Power of vacuum exhaust and dehumidification device (W) without without 180(optional) without
Nitrogen protection have have have have
size (mm) 800X350X580 800X350X580 850X350X580 800X350X580




Key Technical Parameters SJZS-20 SJZS-20A
Screw diameter (mm) 20/40 20/53
Screw thread length (mm) 390 480
The screw rotation speed (rpm) 0-50 51
Barrel form Do not open Do not open
Main motor power( kw) 1.5 2.2
Circulating extrusion dosage (g/per time) without without
Direct extrusion dosage (max kg/h) 6 6
Heating power (kw) 4.5 5
Feed 1 power (W) 25(optional) 25
Feed 2 power (W) without 25
Power of vacuum exhaust and dehumidification device (W) 250(optional) 250(optional)
Nitrogen protection have have
Size (mm) 1020x450x600 1120x450x600
