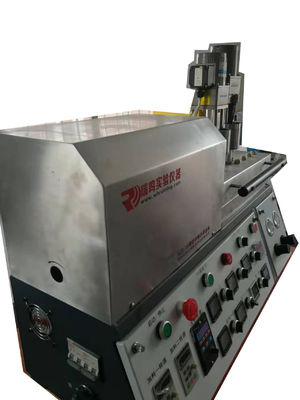

70rpm Lab Scale Twin Screw Extruder 800X350X580mm

70rpm Lab Scale Twin Screw Extruder 800X350X580mm

  • 70rpm Lab Scale Twin Screw Extruder 800X350X580mm
70rpm Lab Scale Twin Screw Extruder 800X350X580mm
Product Details:
Place of Origin: China
Brand Name: RUIMING
Certification: patent
Model Number: SJZS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton box and wooden box
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Heating Temperature (max ℃): 450 Feed 1 Power (W): 25
Feed 2 Power ( W): Without Power Of Vacuum Exhaust And Dehumidification Device (W): Without
Nitrogen Protection: Have Size (mm): 800X350X580
High Light:

70rpm Lab Scale Twin Screw Extruder

,

Lab Scale Twin Screw Extruder 800mm

,

lab extruder machine 580mm

RUIMING Mini Lab Testing Machine Twin Screw Extruder



Feeding method:



Imported equipment use manual or pneumatic pressure way to feed the material, for powder, especially micron grade and nano-sized powder, it is difficult or impossible to feed, the feeding way of Ruiming micro twin screw extruder is frequency conversion control or forcibly quantitative feeding servo control, it can overcome the electrostatic adsorption properties of powder, especially the micron grade, nanoscale powder, suitable for grain, fish seed material, all kinds of powder, Powder including magnetic powder, ceramic powder, graphene, teflon powder, metal powder, short glass fiber (level can reach nanoscale powder), and SJZS - 10 b model used in the form of double inlet with double feeding device, the high polymer material to add other accessories without prior premixed can achieve the result of precision ingredients.



Heating Temperature (max ℃): 450 Feed 1 Power (W): 25
Feed 2 Power ( W): Without Power Of Vacuum Exhaust And Dehumidification Device (W): Without
Nitrogen Protection: Have Size (mm): 800X350X580



Parameters of Mini Lab Extruder



Key Technical Parameters SJZS-7A SJZS-10A SJZS-10B SJZS-10Z
Screw diameter (mm) 7/25 10/30 10/30 10/30
Screw thread length (mm) 190 190 250 190
The screw rotation speed (rpm) 70 51 51 51
Barrel form Can open Can open Can open Can open
Main motor power( kw) 0.55 0.75 0.75 0.75
Circulating extrusion dosage (g/per time) 5-10(manual control) 15-18(auto control) 15-18(auto control) without
Direct extrusion dosage (max kg/h) 0.45 1.5 1.5 1.5
Heating temperature (max ℃) 450 450 450 450
Feed 1 power (W) without 25(optional) 25 25
Feed 2 power ( W) without without 25 without
Power of vacuum exhaust and dehumidification device (W) without without 180(optional) without
Nitrogen protection have have have have
size (mm) 800X350X580 800X350X580 850X350X580 800X350X580




Key Technical Parameters SJZS-20 SJZS-20A
Screw diameter (mm) 20/40 20/53
Screw thread length (mm) 390 480
The screw rotation speed (rpm) 0-50 51
Barrel form Do not open Do not open
Main motor power( kw) 1.5 2.2
Circulating extrusion dosage (g/per time) without without
Direct extrusion dosage (max kg/h) 6 6
Heating power (kw) 4.5 5
Feed 1 power (W) 25(optional) 25
Feed 2 power (W) without 25
Power of vacuum exhaust and dehumidification device (W) 250(optional) 250(optional)
Nitrogen protection have have
Size (mm) 1020x450x600 1120x450x600
