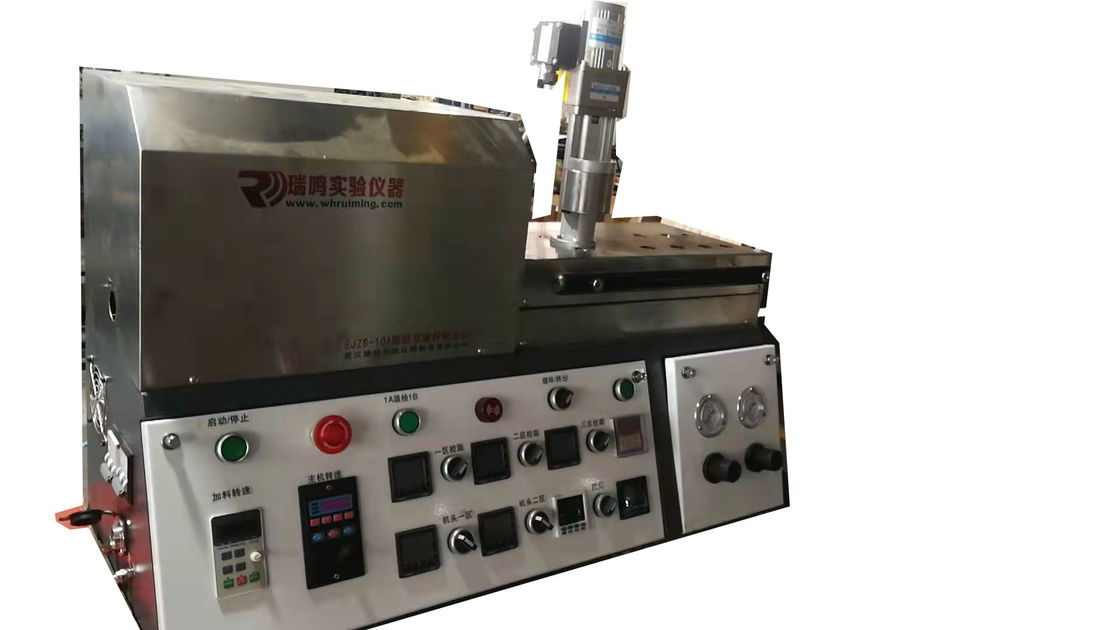

Dia 25mm Lab Twin Screw Extruder With Nitrogen Protection

Dia 25mm Lab Twin Screw Extruder With Nitrogen Protection

  • Dia 25mm Lab Twin Screw Extruder With Nitrogen Protection
Dia 25mm Lab Twin Screw Extruder With Nitrogen Protection
Product Details:
Place of Origin: China
Brand Name: RUIMING
Certification: patent
Model Number: SJZS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton box and wooden box
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Heating Power (kw): 4.5 Feed 1 Power (W): 25(optional)
Feed 2 Power (W): Without Power Of Vacuum Exhaust And Dehumidification Device (W): 250(optional)
Nitrogen Protection: Have Size (mm): 1020x450x600
High Light:

Dia25mm lab twin screw extruder

,

4.5kw lab twin screw extruder

,

Nitrogen Protection lab extruder machine

RUIMING Mini Lab Testing Machine Twin Screw Extruder



Application:



Ruiming Micro injection molding machine combined with Laboratory miniature conical twin screw mixing extruders is applicated in Polymer thermal stability test, chemical rheological, additives/filler dispersion, such as nanoparticles, polymer rheology (ideal rheometer), polymer blends and polymer degradation, reactive blending (extrusion) of active composition of drug/polymer, small amount of blending, the preparation of test samples, lab mixing of small sample, evaluation of competing products.

Ruiming SJS micro injection molding machine provides rapid prototyping means of small samples for materials research laboratories, pharmaceutical and food processing industries, etc. It can make mixed samples into splines for performance testing, so it is very suitable for formula research, especially expensive materials in formula or samples that are difficult to obtain. Micro injection molding machine combined with micro twin screw mixed extruder can quickly get the reliable, high repeatability sample, not only the sample time cycle is greatly shortened, but also greatly save the cost of formula research.



Heating Power (kw): 4.5 Feed 1 Power (W): 25(optional)
Feed 2 Power (W): Without Power Of Vacuum Exhaust And Dehumidification Device (W): 250(optional)
Nitrogen Protection: Have Size (mm): 1020x450x600



Parameters of Mini Lab Extruder



Key Technical Parameters SJZS-7A SJZS-10A SJZS-10B SJZS-10Z
Screw diameter (mm) 7/25 10/30 10/30 10/30
Screw thread length (mm) 190 190 250 190
The screw rotation speed (rpm) 70 51 51 51
Barrel form Can open Can open Can open Can open
Main motor power( kw) 0.55 0.75 0.75 0.75
Circulating extrusion dosage (g/per time) 5-10(manual control) 15-18(auto control) 15-18(auto control) without
Direct extrusion dosage (max kg/h) 0.45 1.5 1.5 1.5
Heating temperature (max ℃) 450 450 450 450
Feed 1 power (W) without 25(optional) 25 25
Feed 2 power ( W) without without 25 without
Power of vacuum exhaust and dehumidification device (W) without without 180(optional) without
Nitrogen protection have have have have
size (mm) 800X350X580 800X350X580 850X350X580 800X350X580




Key Technical Parameters SJZS-20 SJZS-20A
Screw diameter (mm) 20/40 20/53
Screw thread length (mm) 390 480
The screw rotation speed (rpm) 0-50 51
Barrel form Do not open Do not open
Main motor power( kw) 1.5 2.2
Circulating extrusion dosage (g/per time) without without
Direct extrusion dosage (max kg/h) 6 6
Heating power (kw) 4.5 5
Feed 1 power (W) 25(optional) 25
Feed 2 power (W) without 25
Power of vacuum exhaust and dehumidification device (W) 250(optional) 250(optional)
Nitrogen protection have have
Size (mm) 1020x450x600 1120x450x600
