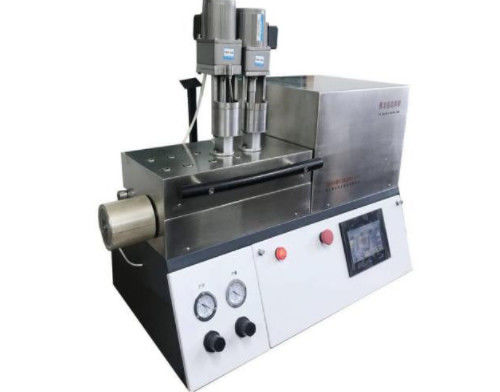

ODM LCD Control Mini Lab Extruder 5KW Heating Power

Name: ODM LCD Control Mini Lab Extruder 5KW Heating Power
Brand: Wuhan Ruiming Experimental Instrument
SKU: SJZS
Availability: InStock

Brand Name:	RUIMING
Model Number:	SJZS
MOQ:	1pcs
Price:	Negotiable
Delivery Time:	20-90 days after order confirmed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

patent

Barrel Form:

Do Not Open

Direct Extrusion Dosage (max Kg/h):

Heating Power (kw):

Feed 1 Power (W):

Feed 2 Power ( W):

Nitrogen Protection:

Have

Packaging Details:

carton box and wooden box

Supply Ability:

200 sets per month

Highlight:

LCD Control Minilab Extruder

ODM Minilab Extruder

ODM 5KW Mini Lab Extruder

Product Description

Parameters of Lab Mini Twin Screw Extruder With LCD Control Screen

Key Technical Parameters	SJZS-7A	SJZS-10A	SJZS-10B	SJZS-10Z
Screw diameter (mm)	7/25	10/30	10/30	10/30
Screw thread length (mm)	190	190	250	190
The screw rotation speed (rpm)	70	51	51	51
Barrel form	Can open	Can open	Can open	Can open
Main motor power( kw)	0.55	0.75	0.75	0.75
Circulating extrusion dosage (g/per time)	5-10(manual control)	15-18(auto control)	15-18(auto control)	without
Direct extrusion dosage (max kg/h)	0.45	1.5	1.5	1.5
Heating temperature (max ℃)	450	450	450	450
Feed 1 power (W)	without	25(optional)	25	25
Feed 2 power ( W)	without	without	25	without
Power of vacuum exhaust and dehumidification device (W)	without	without	180(optional)	without

Nitrogen protection	have	have	have	have
size (mm)	800X350X580	800X350X580	850X350X580	800X350X580

Key Technical Parameters	SJZS-20	SJZS-20A
Screw diameter (mm)	20/40	20/53
Screw thread length (mm)	390	480
The screw rotation speed (rpm)	0-50	51
Barrel form	Do not open	Do not open
Main motor power( kw)	1.5	2.2
Circulating extrusion dosage (g/per time)	without	without
Direct extrusion dosage (max kg/h)	6	6
Heating power (kw)	4.5	5
Feed 1 power (W)	25(optional)	25
Feed 2 power (W)	without	25
Power of vacuum exhaust and dehumidification device (W)	250(optional)	250(optional)
Nitrogen protection	have	have
Size (mm)	1020x450x600	1120x450x600

Advantages of Lab Mini Twin Screw Extruder With LCD Control Screen

1.plastic extruder is a kind of special equipment for extruding PVC compound. With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material and granulation.

2.The extruder machine communication system has applied special LCD and invertor system . More intelligent, easy to operate.
