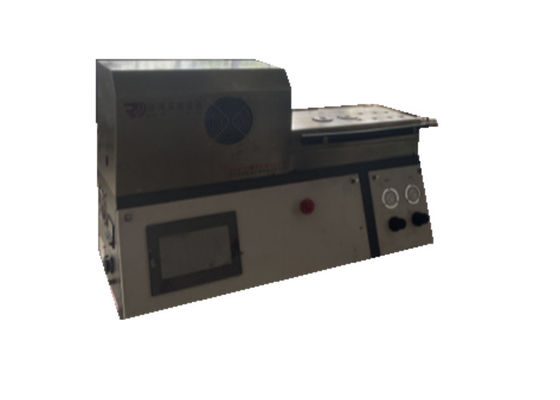

Dia 40mm 1.5kg/H Desktop Mini Lab Extruder For Spline

Dia 40mm 1.5kg/H Desktop Mini Lab Extruder For Spline

  • Dia 40mm 1.5kg/H Desktop Mini Lab Extruder For Spline
Dia 40mm 1.5kg/H Desktop Mini Lab Extruder For Spline
Product Details:
Place of Origin: China
Brand Name: RUIMING
Certification: patent
Model Number: SJZS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton box and wooden box
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Screw Diameter (mm): 20/53 Screw Thread Length (mm): 190/250
The Screw Rotation Speed (rpm): 70/51 Main Motor Power( Kw): 0.75
Circulating Extrusion Dosage (g/per Time): 15-18(auto Control) Direct Extrusion Dosage (max Kg/h): 1.5
High Light:

Dia40mm Mini Lab Extruder

,

1.5kg/H Desktop Mini Lab Extruder

,

MiniLab Extruder For Spline

Desktop Mini Lab Extruder For New Material Spline



Key Techniacal Parameters of Mini Lab Extruder



Screw Diameter (mm): 20/53 Screw Thread Length (mm): 190/250
The Screw Rotation Speed (rpm): 70/51 Main Motor Power( Kw): 0.75
Circulating Extrusion Dosage (g/per Time): 15-18(auto Control) Direct Extrusion Dosage (max Kg/h): 1.5



Key Technical Parameters SJZS-7A SJZS-10A SJZS-10B SJZS-10Z
Screw diameter (mm) 7/25 10/30 10/30 10/30
Screw thread length (mm) 190 190 250 190
The screw rotation speed (rpm) 70 51 51 51
Barrel form Can open Can open Can open Can open
Main motor power( kw) 0.55 0.75 0.75 0.75
Circulating extrusion dosage (g/per time) 5-10(manual control) 15-18(auto control) 15-18(auto control) without
Direct extrusion dosage (max kg/h) 0.45 1.5 1.5 1.5
Heating temperature (max ℃) 450 450 450 450
Feed 1 power (W) without 25(optional) 25 25
Feed 2 power ( W) without without 25 without
Power of vacuum exhaust and dehumidification device (W) without without 180(optional) without
Nitrogen protection have have have have
size (mm) 800X350X580 800X350X580 850X350X580 800X350X580



Key Technical Parameters SJZS-20 SJZS-20A
Screw diameter (mm) 20/40 20/53
Screw thread length (mm) 390 480
The screw rotation speed (rpm) 0-50 51
Barrel form Do not open Do not open
Main motor power( kw) 1.5 2.2
Circulating extrusion dosage (g/per time) without without
Direct extrusion dosage (max kg/h) 6 6
Heating power (kw) 4.5 5
Feed 1 power (W) 25(optional) 25
Feed 2 power (W) without 25
Power of vacuum exhaust and dehumidification device (W) 250(optional) 250(optional)
Nitrogen protection have have
Size (mm) 1020x450x600 1120x450x600





Mini lab extruder



Features:



1. Low amount of raw materials, low energy consumption, especially for some valuable raw materials test research

2. Easy to operate, good plasticizing and dispersing performance, can be carried out regular cycle extrusion or continuous extrusion

3. Small size, light weight, can work on the test bench, and the process of inert gas protection

4. Can replace the different head and the corresponding auxiliary machine, in a continuous extrusion state can do plastic tube, blowing, film, sheet, profile, spinning, granulation, coating and other plastic products

5. Can be used with our micro-injection molding machine, the material can be sent directly into the extruder into the injection box injection box, and directly facilitate the injection molding required spline

6. The use of different feeding device can use micron, nano-powder, fish seeds and granular raw materials extrusion.

7. Different shapes of different raw materials using a number of feed and the main motor and the proportion of the feed motor can make the dispersion of raw materials to achieve the best results.
