53mm 6kg/H Lab Scale Double Screw Extruder With Nitrogen Protection

Name: 53mm 6kg/H Lab Scale Double Screw Extruder With Nitrogen Protection
Brand: Wuhan Ruiming Experimental Instrument
SKU: SJZS
Availability: InStock

Brand Name:	RUIMING
Model Number:	SJZS
MOQ:	1pcs
Price:	Negotiable
Delivery Time:	30-90DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

patent

The Screw Rotation Speed (rpm):

Circulating Extrusion Dosage (g/per Time):

15-18(auto Control)

Direct Extrusion Dosage (max Kg/h):

Heating Power (kw):

4.5

Feed 2 Power ( W):

Without

Power Of Vacuum Exhaust And Dehumidification Device (W):

Without

Packaging Details:

carton box and wooden box

Supply Ability:

200 sets per month

Highlight:

6kg/H Double Screw Extruder

53mm Double Screw Extruder

Nitrogen Protection lab scale extruder

Product Description

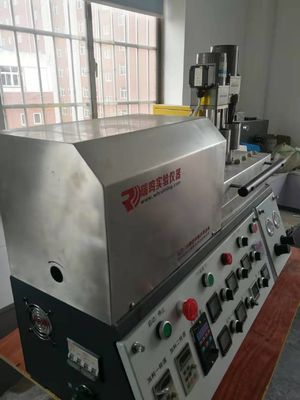

Mini Lab Twin Screw Extruder With Nitrogen Protection

Parameters of Mini Lab Twin Screw Extruder With Nitrogen Protection

Key Technical Parameters	SJZS-7A	SJZS-10A	SJZS-10B	SJZS-10Z
Screw diameter (mm)	7/25	10/30	10/30	10/30
Screw thread length (mm)	190	190	250	190
The screw rotation speed (rpm)	70	51	51	51
Barrel form	Can open	Can open	Can open	Can open
Main motor power( kw)	0.55	0.75	0.75	0.75
Circulating extrusion dosage (g/per time)	5-10(manual control)	15-18(auto control)	15-18(auto control)	without
Direct extrusion dosage (max kg/h)	0.45	1.5	1.5	1.5
Heating temperature (max ℃)	450	450	450	450
Feed 1 power (W)	without	25(optional)	25	25
Feed 2 power ( W)	without	without	25	without
Power of vacuum exhaust and dehumidification device (W)	without	without	180(optional)	without
Nitrogen protection	have	have	have	have
size (mm)	800X350X580	800X350X580	850X350X580	800X350X580

Key Technical Parameters	SJZS-20	SJZS-20A
Screw diameter (mm)	20/40	20/53
Screw thread length (mm)	390	480
The screw rotation speed (rpm)	0-50	51
Barrel form	Do not open	Do not open
Main motor power( kw)	1.5	2.2
Circulating extrusion dosage (g/per time)	without	without
Direct extrusion dosage (max kg/h)	6	6
Heating power (kw)	4.5	5
Feed 1 power (W)	25(optional)	25
Feed 2 power (W)	without	25
Power of vacuum exhaust and dehumidification device (W)	250(optional)	250(optional)
Nitrogen protection	have	have
Size (mm)	1020x450x600	1120x450x600

Features of Mini Lab Twin Screw Extruder With Nitrogen Protection

The Mini Plastic Extruder is a necessary and economical equipment for lab, it is mainly used for experiment that testing the melting temperature and chemical properties of the thermo-plastic such as PVC, PPR, PE , PP , HDPE, LDPE and other Polymer material.

I t also used for PVC, PP, HDPE, PE pipes co-extruding, it can be used for the color line, outside face of the pipes. It has the characters of low noise, speed adjustable.
