professional manufacturer for laboratory equipment
 |
| Place of Origin: | China |
| Brand Name: | RUIMING |
| Certification: | patent |
| Model Number: | SJZS |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton box and wooden box |
| Delivery Time: | 20-90 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 200 sets per month |
| Direct Extrusion Dosage (max Kg/h): | 1.5 | Heating Temperature (max ℃): | 450 |
|---|---|---|---|
| Feed 1 Power (W): | 25 | Feed 2 Power ( W): | 25 |
| Power Of Vacuum Exhaust And Dehumidification Device (W): | 180(optional) | Nitrogen Protection: | Have |
| High Light: | OEM Mini Lab Extruder,Mini Lab Extruder 1.5kg/H,5 Temperature Control Areas lab Extruder |
||

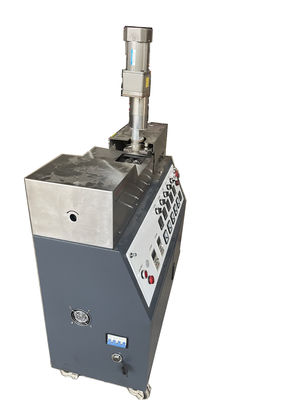

5 Temperature Control Areas Mini Lab Extruder
Wuhan Ruiming Plastic Machinery Co., Ltd. is located in wuhan, the historical and cultural city, the capital of Hubei province, which was established in 2001. The company is a professional manufacturer of polymer experimental equipment, specializing in the production of miniature double-cone twin-screw screw extruder, experimental micro-extruder, micro-injection machine, micro-high tensile ratio spinning machine, micro-extrusion unit, micro-granulator unit and experimental plastic blowing machine series products and so on. The company also successfully developed and issued the leading level of laboratory mini twin screw extruder and laboratory mini injection molding machine series products. Main performance indicators of the series of mini extruder and mini injection machine have achieved and surpassed the level of similar foreign products such as HAAKE MiniLab and DSM Xplore in many aspects, but have high cost performance. Especially suitable for the laboratory research needs of universities and enterprise R&D departments
| Direct Extrusion Dosage (max Kg/h): | 1.5 | Heating Temperature (max ℃): | 450 |
|---|---|---|---|
| Feed 1 Power (W): | 25 | Feed 2 Power ( W): | 25 |
| Power Of Vacuum Exhaust And Dehumidification Device (W): | 180(optional) | Nitrogen Protection: | Have |
Parameters of Mini Lab Extruder
| Key Technical Parameters | SJZS-7A | SJZS-10A | SJZS-10B | SJZS-10Z |
| Screw diameter (mm) | 7/25 | 10/30 | 10/30 | 10/30 |
| Screw thread length (mm) | 190 | 190 | 250 | 190 |
| The screw rotation speed (rpm) | 70 | 51 | 51 | 51 |
| Barrel form | Can open | Can open | Can open | Can open |
| Main motor power( kw) | 0.55 | 0.75 | 0.75 | 0.75 |
| Circulating extrusion dosage (g/per time) | 5-10(manual control) | 15-18(auto control) | 15-18(auto control) | without |
| Direct extrusion dosage (max kg/h) | 0.45 | 1.5 | 1.5 | 1.5 |
| Heating temperature (max ℃) | 450 | 450 | 450 | 450 |
| Feed 1 power (W) | without | 25(optional) | 25 | 25 |
| Feed 2 power ( W) | without | without | 25 | without |
| Power of vacuum exhaust and dehumidification device (W) | without | without | 180(optional) | without |
| Nitrogen protection | have | have | have | have |
| size (mm) | 800X350X580 | 800X350X580 | 850X350X580 | 800X350X580 |
| Key Technical Parameters | SJZS-20 | SJZS-20A |
| Screw diameter (mm) | 20/40 | 20/53 |
| Screw thread length (mm) | 390 | 480 |
| The screw rotation speed (rpm) | 0-50 | 51 |
| Barrel form | Do not open | Do not open |
| Main motor power( kw) | 1.5 | 2.2 |
| Circulating extrusion dosage (g/per time) | without | without |
| Direct extrusion dosage (max kg/h) | 6 | 6 |
| Heating power (kw) | 4.5 | 5 |
| Feed 1 power (W) | 25(optional) | 25 |
| Feed 2 power (W) | without | 25 |
| Power of vacuum exhaust and dehumidification device (W) | 250(optional) | 250(optional) |
| Nitrogen protection | have | have |
| Size (mm) | 1020x450x600 | 1120x450x600 |
