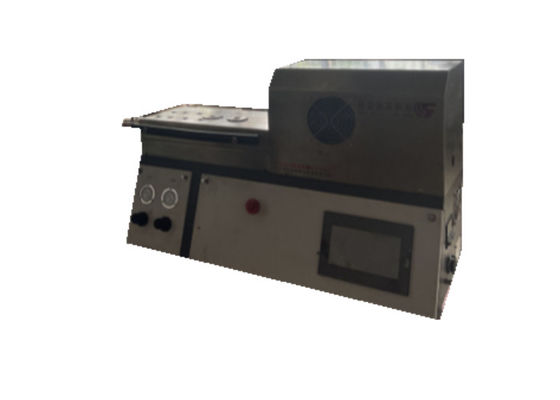

PLC Control Dia 10mm Mini Lab Twin Screw Extruder

Name: PLC Control Dia 10mm Mini Lab Twin Screw Extruder
Brand: Wuhan Ruiming Experimental Instrument
SKU: SJZS
Availability: InStock

Brand Name:	RUIMING
Model Number:	SJZS
MOQ:	1pcs
Price:	negotiable
Delivery Time:	20-90 days after order confirmed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

patent

Screw Diameter (mm):

10/30

Screw Thread Length (mm):

190/250

Barrel Form:

Can Open

Main Motor Power( Kw):

0.75

Heating Temperature (max ℃):

450

Nitrogen Protection:

Have

Packaging Details:

carton box and wooden box

Supply Ability:

200 sets per month

Highlight:

Dia10mm Lab Twin Screw Extruder

250mm Lab Twin Screw Extruder

PLC Control mini twin screw extruder

Product Description

Lab twin screw extruder PLC control communication system

The equipment used advanced PLC control communication system, a variety of integrated extrusion machine characteristics, the best set of parameters to control the work process more reliable, more simple, completely change the current dependence on operating experience in the control of the situation The models show that the introduction of our extrusion technology theoretical research has been a new breakthrough, with a number of universities and scientific research units to use, very good response, the compression system at the same time by some large food, pharmaceutical, Chemical companies such as for laboratory and research equipment.

Screw Diameter (mm):	10/30	Screw Thread Length (mm):	190/250
Barrel Form:	Can Open	Main Motor Power( Kw):	0.75
Heating Temperature (max ℃):	450	Nitrogen Protection:	Have

Key Technical Parameters of Lab Twin Screw Extruder

Key Technical Parameters	SJZS-7A	SJZS-10A	SJZS-10B	SJZS-10Z
Screw diameter (mm)	7/25	10/30	10/30	10/30
Screw thread length (mm)	190	190	250	190
The screw rotation speed (rpm)	70	51	51	51
Barrel form	Can open	Can open	Can open	Can open
Main motor power( kw)	0.55	0.75	0.75	0.75
Circulating extrusion dosage (g/per time)	5-10(manual control)	15-18(auto control)	15-18(auto control)	without
Direct extrusion dosage (max kg/h)	0.45	1.5	1.5	1.5
Heating temperature (max ℃)	450	450	450	450
Feed 1 power (W)	without	25(optional)	25	25
Feed 2 power ( W)	without	without	25	without
Power of vacuum exhaust and dehumidification device (W)	without	without	180(optional)	without
Nitrogen protection	have	have	have	have
size (mm)	800X350X580	800X350X580	850X350X580	800X350X580

Key Technical Parameters	SJZS-20	SJZS-20A
Screw diameter (mm)	20/40	20/53
Screw thread length (mm)	390	480
The screw rotation speed (rpm)	0-50	51
Barrel form	Do not open	Do not open
Main motor power( kw)	1.5	2.2
Circulating extrusion dosage (g/per time)	without	without
Direct extrusion dosage (max kg/h)	6	6
Heating power (kw)	4.5	5
Feed 1 power (W)	25(optional)	25
Feed 2 power (W)	without	25
Power of vacuum exhaust and dehumidification device (W)	250(optional)	250(optional)
Nitrogen protection	have	have
Size (mm)	1020x450x600	1120x450x600
