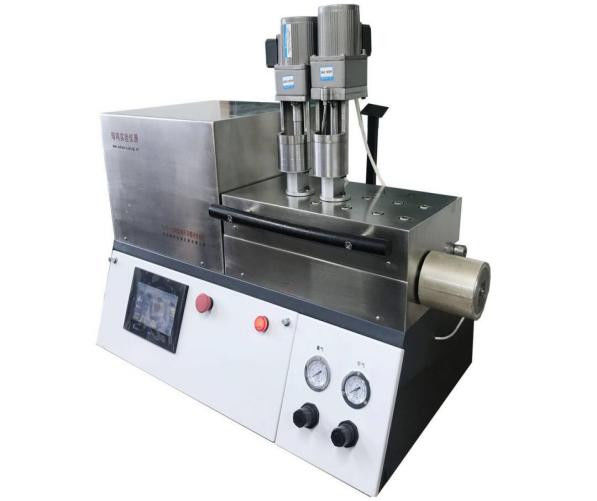

Dia 30mm PEEK PLA PA Mini Lab Extruder Twin Screw Extrusion Machine

Dia 30mm PEEK PLA PA Mini Lab Extruder Twin Screw Extrusion Machine

Dia 30mm PEEK PLA PA Mini Lab Extruder Twin Screw Extrusion Machine
Dia 30mm PEEK PLA PA Mini Lab Extruder Twin Screw Extrusion Machine
Dia 30mm PEEK PLA PA Mini Lab Extruder Twin Screw Extrusion Machine
Product Details:
Place of Origin: China
Brand Name: RUIMING
Certification: patent
Model Number: SJZS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiable
Packaging Details: carton box and wooden box
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Screw Diameter (mm): 10/30 Screw Thread Length (mm): 190/250
Barrel Form: Can Open Main Motor Power( Kw): 0.75
Heating Temperature (max ℃): 450 Nitrogen Protection: Have
High Light:

Dia30mm Mini Lab Extruder

,

PEEK PLA Mini Lab Extruder

,

PA twin screw extrusion machine

Lab twin cones twin screw extruder PLC control communication system

Advantages of Micro twin cones twin screw extruder



SJZS series mini twin screw extruder is a new generation of experimental equipment combining the advantages of internal mixer.

It has the following characteristics:

Ο Less raw materials, precision ingredients, operating temperature: from room temperature to 450°, can work placed on the experimental table or fume cabinet.

Ο Easy to operate, good plasticizing dispersion performance, can be timed cycle extrusion or continuous extrusion. The process can be inert gas protection and vacuum exhaust. The barrel can be opened and the screw can be disassembled for easy cleaning.

Ο Change different head and the corresponding auxiliary machine which produced by our company, in the continuous extrusion state, it can produce products shaped as plastic pipe blowing bottle, film, sheet, profile, spinning, cutting, coating and other plastic products.

Ο It can be used with the micro-injection machine produced by our company. The material can be directly squeezed into the injection sleeve of the injection machine from the extrusion outlet, and directly facilitate the injection molding of the required spline.

Ο Suitable for almost all thermoplastic polymers PEEK, PLA, PA, PC, etc., or add magnetic particles, porcelain powder, graphene, PTFE powder, metal powder, glass fiber (powder can reach nanoscale)



Screw Diameter (mm): 10/30 Screw Thread Length (mm): 190/250
Barrel Form: Can Open Main Motor Power( Kw): 0.75
Heating Temperature (max ℃): 450 Nitrogen Protection: Have



Key Technical Parameters of Lab Twin Screw Extruder



Key Technical Parameters SJZS-7A SJZS-10A SJZS-10B SJZS-10Z
Screw diameter (mm) 7/25 10/30 10/30 10/30
Screw thread length (mm) 190 190 250 190
The screw rotation speed (rpm) 70 51 51 51
Barrel form Can open Can open Can open Can open
Main motor power( kw) 0.55 0.75 0.75 0.75
Circulating extrusion dosage (g/per time) 5-10(manual control) 15-18(auto control) 15-18(auto control) without
Direct extrusion dosage (max kg/h) 0.45 1.5 1.5 1.5
Heating temperature (max ℃) 450 450 450 450
Feed 1 power (W) without 25(optional) 25 25
Feed 2 power ( W) without without 25 without
Power of vacuum exhaust and dehumidification device (W) without without 180(optional) without
Nitrogen protection have have have have
size (mm) 800X350X580 800X350X580 850X350X580 800X350X580




Key Technical Parameters SJZS-20 SJZS-20A
Screw diameter (mm) 20/40 20/53
Screw thread length (mm) 390 480
The screw rotation speed (rpm) 0-50 51
Barrel form Do not open Do not open
Main motor power( kw) 1.5 2.2
Circulating extrusion dosage (g/per time) without without
Direct extrusion dosage (max kg/h) 6 6
Heating power (kw) 4.5 5
Feed 1 power (W) 25(optional) 25
Feed 2 power (W) without 25
Power of vacuum exhaust and dehumidification device (W) 250(optional) 250(optional)
Nitrogen protection have have
Size (mm) 1020x450x600 1120x450x600
