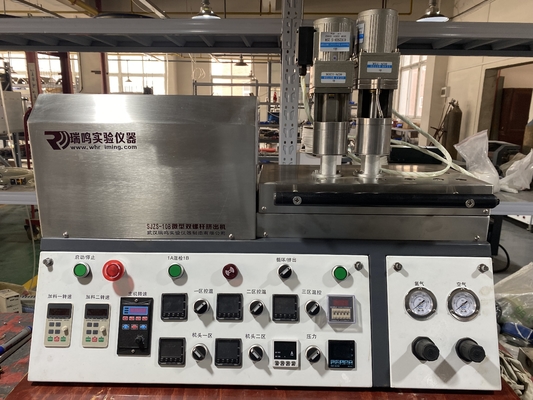

Small Laboratory 3D Printer Plastic Filament Extruder 1.75mm

Small Laboratory 3D Printer Plastic Filament Extruder 1.75mm

Small Laboratory 3D Printer Plastic Filament Extruder 1.75mm
Small Laboratory 3D Printer Plastic Filament Extruder 1.75mm
Small Laboratory 3D Printer Plastic Filament Extruder 1.75mm
Product Details:
Place of Origin: China
Brand Name: RUIMING
Certification: patent
Model Number: SJZS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiable
Packaging Details: carton box and wooden box
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Screw Diameter (mm): 10/30 Screw Thread Length (mm): 190/250
Barrel Form: Can Open Main Motor Power( Kw): 0.75
Heating Temperature (max ℃): 450 Nitrogen Protection: Have
High Light:

3D Printer Plastic Filament Extruder

,

Plastic Filament Extruder 1.75mm

Small Laboratory 1.75mm 3D Printer Plastic Filament Extruder

Brief introduction of Ruiming

Our company is a professional manufacturer of polymer experimental equipment, specializing in the production of experimental plastic extruder, plastic injection molding machine, twin screw extrusion melt spinning machine, micro extrusion tube, micro profile, micro grain cutter and experimental double station automatic bottle blowing machine, micro sheet, micro film, micro melt-blown and other products. The company is also the first one successfully research and developed laboratory mini twin screw extruder and laboratory mini injection molding machine series products with leading level at home and abroad.




Key Technical Parameters of Plastic Filament Extruder



Key Technical Parameters SJZS-7A SJZS-10A SJZS-10B SJZS-10Z
Screw diameter (mm) 7/25 10/30 10/30 10/30
Screw thread length (mm) 190 190 250 190
The screw rotation speed (rpm) 70 51 51 51
Barrel form Can open Can open Can open Can open
Main motor power( kw) 0.55 0.75 0.75 0.75
Circulating extrusion dosage (g/per time) 5-10(manual control) 15-18(auto control) 15-18(auto control) without
Direct extrusion dosage (max kg/h) 0.45 1.5 1.5 1.5
Heating temperature (max ℃) 450 450 450 450
Feed 1 power (W) without 25(optional) 25 25
Feed 2 power ( W) without without 25 without
Power of vacuum exhaust and dehumidification device (W) without without 180(optional) without
Nitrogen protection have have have have
size (mm) 800X350X580 800X350X580 850X350X580 800X350X580
