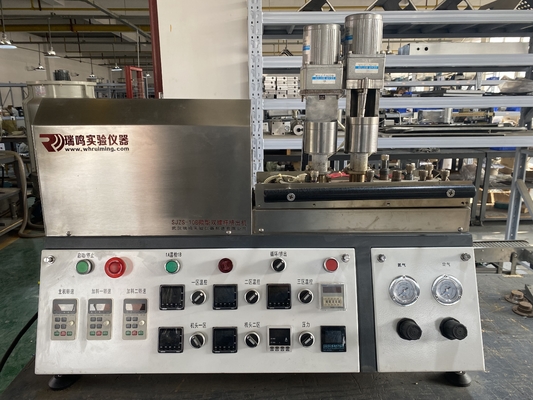

Micro Double Cone Twin Screw Extruder For PEEK Ceramic Powder Graphene Research

Micro Double Cone Twin Screw Extruder For PEEK Ceramic Powder Graphene Research

Micro Double Cone Twin Screw Extruder For PEEK Ceramic Powder Graphene Research
Micro Double Cone Twin Screw Extruder For PEEK Ceramic Powder Graphene Research
Micro Double Cone Twin Screw Extruder For PEEK Ceramic Powder Graphene Research
Product Details:
Place of Origin: China
Brand Name: RUIMING
Certification: patent
Model Number: SJZS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiable
Packaging Details: carton box and wooden box
Delivery Time: 20-90 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Screw Diameter (mm): 10/30 Feeder Quantity: Customizable
Barrel Form: Can Open Main Motor Power( Kw): 0.75
Heating Temperature (max ℃): 450 Nitrogen Protection: Have
High Light:

Micro Double Cone Twin Screw Extruder

,

Ceramic Powder Graphene Twin Screw Extruder

Micro Lab Extruder For PEEK Ceramic Powder Graphene Research

Micro Double Cone Twin Screw Extruder For PEEK Ceramic Powder Graphene Research

Ruiming Experimental Instrument makes your experiment more convenient



-- Miniature double cone twin screw extruder



SJZS series mini twin screw extruder combines the advantages of the mixer and is a new generation of experimental equipment

It has the following characteristics:



1. Low raw material consumption, precise batching, operating temperature from room temperature to 450℃, can work placed on the experimental workbench or fume hood.

2. Easy to operate, good plasticizing and dispersing performance, can be timed cycle extrusion or continuous extrusion, there is gas protection and vacuum exhaust during work process. The barrel can be opened, the screw is removable, easy to clean.

3. Replaced different nose and corresponding auxiliary machines produced by our company, it can produce different shape products such as tube blowing bottle, film, sheet material, profile, spinning, cutting and coating under continuous extrusion state.

4. It can be used with the micro injection machine produced by our company. The material can be directly squeezed into the injection sleeve of the injection machine from the extrusion outlet. And directly injection molding required spline.

5. Suitable for almost all thermoplastic polymer PEEK, PLA, PA, PC, etc., or material add magnetic particles, porcelain powder, graphene, PTFE powder, metal powder, glass fiber (powder can reach nano level)



Key technical parameters of Micro Lab Extruder For PEEK Ceramic Powder Graphene Research



Key technical parameters SJZS-7A SJZS-10A SJZS-10B GJZS-10 series
Screw diameter (small/big head)(mm) 7/25 10/30 10/30 10/33
Length of screw thread mm 190 250 250 340
The screw rotation speed rpm 70 51 51 51
Barrel form Can open Can open Can open Can not open
Main motor power(kw) 0.55 0.75 0.75 0.75
Cyclic extrusion dosage (g/time) 5-10(automatic control) 15-18(automatic control) 15-18(automatic control) no
Direct extrusion dosage (max kg/h) 0.45 1.5 1.5 1.5
Heating temperature (max ℃) 450 450 450 450
Feed I power 25 25 25 25
Feeder quantity 1 1 2(customization) customizable
Power of vacuum exhaust and dehumidifier (W) no no 180(optional) 180(optional)
Nitrogen protection Have Have Have Have
Overall dimensions (mm) 800x350x580 860x350x580 860x380x580 820x350x580
